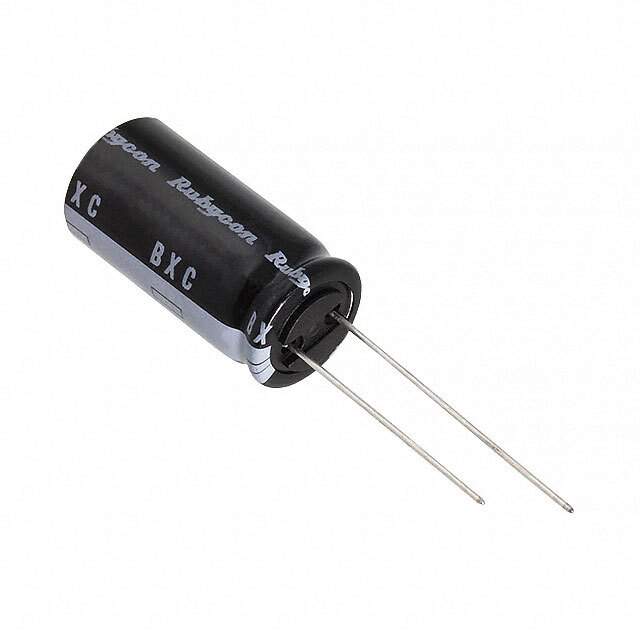

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXC
Package Bulk
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 240 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-2292,450BXC22MEFC12.5X25-ND
Standard Package 1,000
Win Source Part Number 976933-450BXC22MEFC12.5X25
Ultra Librarian 3D Model Ultra Librarian 450BXC22MEFC12.5X25 CAD Model

Description

The Rubycon 976933-450BXC22MEFC12.5X25 is an aluminum electrolytic capacitor with a capacitance of 22μF and a voltage rating of 450V.

  • Capacitance: 22μF
  • Voltage Rating: 450V
  • Tolerance: ±20%
  • Lead Spacing: 0.197" (5.00mm)
  • Ripple Current: 240mA @ 120Hz
  • Lifetime: 12000 hours @ 105°C
  • Mounting: Through-hole
  • Dimension: 0.492" Dia (12.50mm)
  • Temperature Range: -25°C to 105°C
  • Supply and Demand Status: Limited
  • Application: General Purpose
