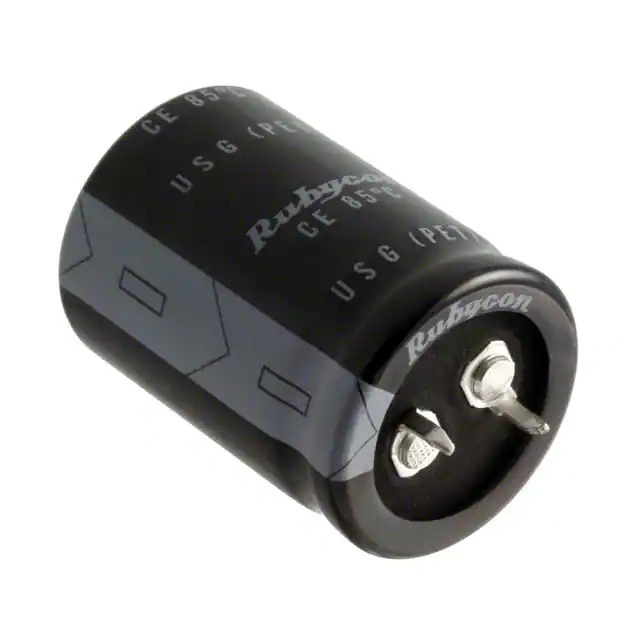

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series USC
Package Bulk
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -25°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 2.05 A @ 120 Hz
Ripple Current @ High Frequency 2.87 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.457" (37.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360686-400USC330MEFCSN30X35
Ultra Librarian 3D Model Ultra Librarian 400USC330MEFCSN30X35 CAD Model

Description

The 1360686-400USC330MEFCSN30X35 capacitor from Rubycon is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 330 μF
  • Voltage - Rated: 400 V
  • Operating Temperature: -25°C ~ 85°C
  • Lifetime @ Temp.: 3000 Hrs @ 85°C
  • Ripple Current @ Low Frequency: 2.05 A @ 120 Hz
  • Ripple Current @ High Frequency: 2.87 A @ 10 kHz
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can - Snap-In
  • Lead Spacing: 0.394" (10.00mm)
  • Size / Dimension: 1.181" Dia (30.00mm)
  • Series: USC
  • Lifecycle Status: Active
