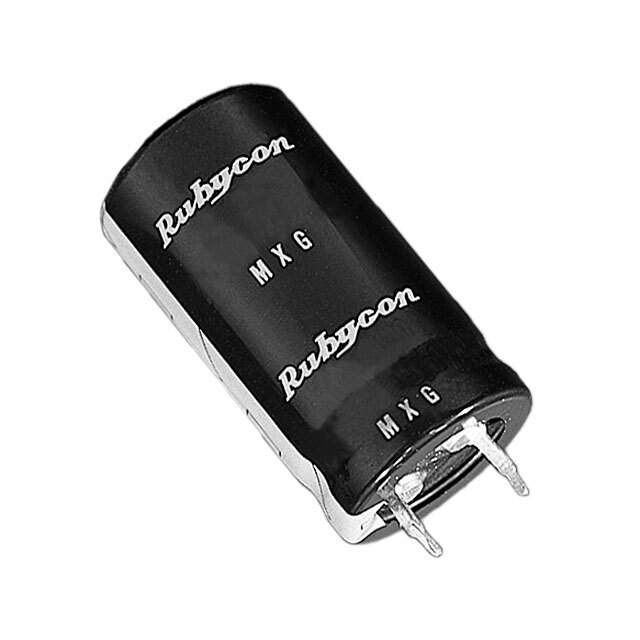

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXG
Package Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 400 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.76 A @ 120 Hz
Ripple Current @ High Frequency 2.464 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.984" Dia (25.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Other Names 400MXG330MEFC25X45,400MXG330MEFCSN25X45-ND,1189-2982,400MXG330MEFC25X45-ND
Standard Package 200
Win Source Part Number 1008390-400MXG330MEFCSN25X45
Ultra Librarian 3D Model Ultra Librarian 400MXG330MEFCSN25X45 CAD Model

Description

The Rubycon MXG series capacitor is a polarized aluminum electrolytic capacitor that is designed for general purpose applications. With a capacitance of 330 µF and a voltage rating of 400 V, this capacitor has a tolerance of ±20%.

  • Ripple current: 1.76 A @ 120 Hz and 2.464 A @ 10 kHz
  • ESR (Equivalent Series Resistance): not specified
  • Mounting: through hole
  • Package: radial, can-snap-in
  • Height-seated (max): 1.850" (47.00mm)
  • Lead spacing: 0.394" (10.00mm)
  • Lifetime: 3000 Hrs @ 105°C
  • Series: MXG series
  • Manufacturer: Rubycon
