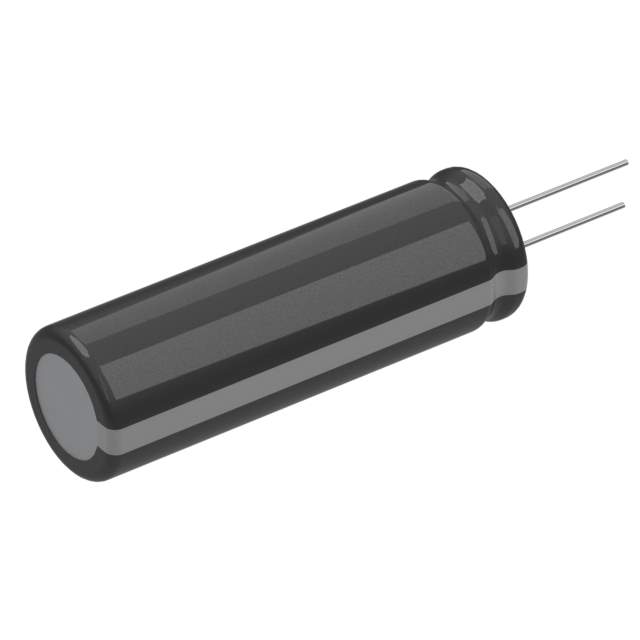

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series LXW
Package Bulk
Capacitance 180 µF
Tolerance ±20%
Voltage - Rated 400 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.14 A @ 120 Hz
Ripple Current @ High Frequency 2.28 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1349950-400LXW180MEFR16X45
Ultra Librarian 3D Model Ultra Librarian 400LXW180MEFR16X45 CAD Model

Description

The Rubycon 1349950-400LXW180MEFR16X45 aluminum electrolytic capacitor is a polarized capacitor with a capacitance of 180 µF and a voltage rating of 400 V. It is manufactured by Rubycon.

  • Capacitance: 180 µF
  • Voltage Rating: 400 V
  • Series: LXW
  • Package: Radial, can
  • Mounting: Through hole
  • Diameter: 0.630" (16.00mm)
  • Height: 1.850" (47.00mm) when seated
  • Applications: General-purpose
  • Tolerance: ±20%
  • ESR: -
  • Lifetime @ Temperature: 12000 hours @ 105°C
  • Operating Temperature Range: -40°C to 105°C
  • ROHS3 Compliant: Yes
  • REACH: Unaffected
