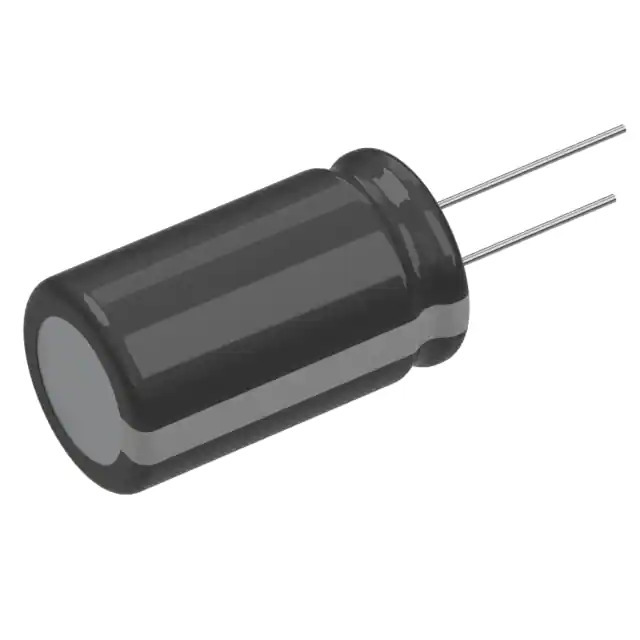

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series CXW
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 710 mA @ 120 Hz
Ripple Current @ High Frequency 1.065 A @ 10 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.319" (33.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357685-400CXW100MEFR16X31.5
Ultra Librarian 3D Model Ultra Librarian 400CXW100MEFR16X31.5 CAD Model

Description

The Rubycon CXW series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

  • Series: CXW
  • Capacitance: 100 µF
  • Voltage Rating: 400 V
  • Tolerance: ±20%
  • Mounting Type: Through Hole
  • Package: Radial, Can
  • Size: 0.630" Dia x 1.319" H
  • Lifetime: 5000 hours @ 105°C
  • Ripple Current (Low Frequency): 710 mA
  • Ripple Current (High Frequency): 1.065 A
  • Lifecycle Status: Active
  • Manufacturer: Rubycon
