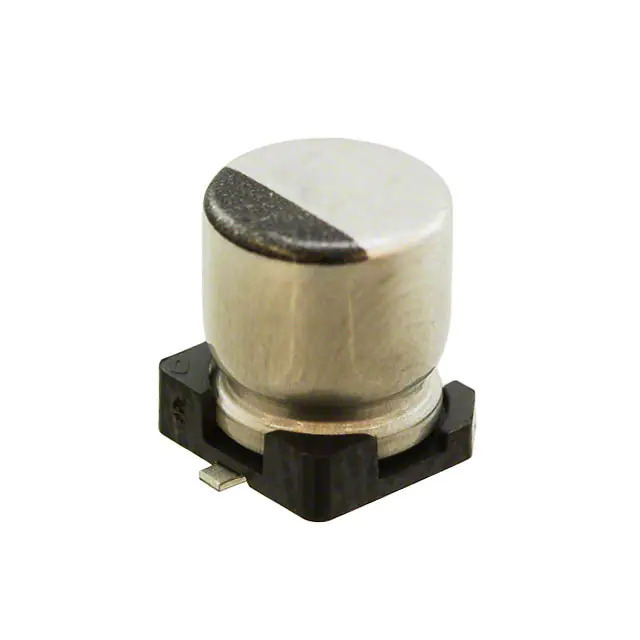

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 54.4 mA @ 120 Hz
Ripple Current @ High Frequency 170 mA @ 100 kHz
Impedance 700 mOhms
Lead Spacing -
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360220-35TZV22M5X6.1
Ultra Librarian 3D Model Ultra Librarian 35TZV22M5X6.1 CAD Model

Description

The Rubycon 1360220-35TZV22M5X6.1 is a high-quality aluminum electrolytic capacitor designed for automotive applications.

  • Capacitance: 22 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Lifetime: 2000 hours @ 105°C
  • Package: Radial, Can - SMD
  • Size: 0.197" diameter and a height of 0.240"
  • Surface Mount Land Size: 0.209" L x 0.209" W
  • Mounting: Surface Mount
  • REACH: Unaffected
  • ECCN: EAR99
  • AEC-Q200: Yes
  • Impedance: Low
