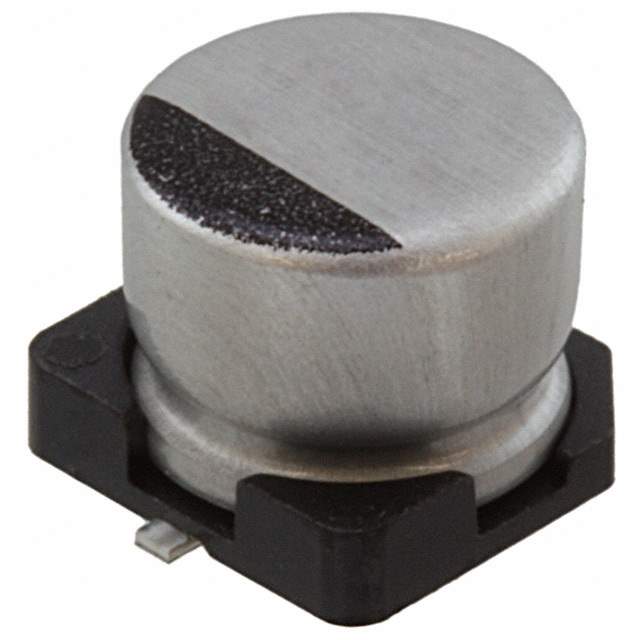

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 1.55 A @ 120 Hz
Ripple Current @ High Frequency 1.7825 A @ 10 kHz
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size 0.748" L x 0.748" W (19.00mm x 19.00mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 75
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340393-35SEV2200M18X21.5
Ultra Librarian 3D Model Ultra Librarian 35SEV2200M18X21.5 CAD Model

Description

The Rubycon 1340393-35SEV2200M18X21.5 is an aluminum electrolytic capacitor with a capacitance of 2200 µF and a voltage rating of 35 V.

  • Capacitance: 2200 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Surface Mount Land Size: 0.748" L x 0.748" W (19.00mm x 19.00mm)
  • Ripple Current (Low Frequency): 1.55 A @ 120 Hz
  • Ripple Current (High Frequency): 1.7825 A @ 10 kHz
  • Height (Seated): 0.866" (22.00mm)
  • Diameter: 0.709" (18.00mm)
  • Lifetime: 2000 Hrs @ 85°C
  • Operating Temperature: -40°C ~ 85°C
  • Application: Automotive
  • Package: Radial, Can-SMD
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
