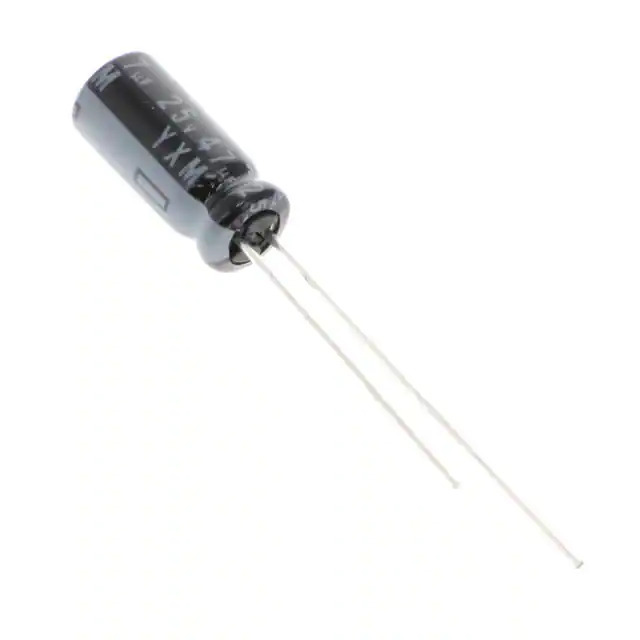

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXM
Package Bulk
Product Status Active
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 91 mA @ 120 Hz
Ripple Current @ High Frequency 130 mA @ 100 kHz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357611-25YXM47MEFR5X11
Ultra Librarian 3D Model Ultra Librarian 25YXM47MEFR5X11 CAD Model

Description

The Rubycon YXM series aluminum electrolytic capacitor is a versatile capacitor designed for general-purpose applications.

  • Series: YXM
  • Capacitance: 47 μF
  • Voltage Rating: 25 V
  • Temperature Range: -40°C to 105°C
  • Mounting Type: Through Hole
  • Diameter: 0.197"
  • Height: 0.492"
  • Lifetime: 10000 hours @ 105°C
  • Application: General Purpose
  • Manufacturer: Rubycon
