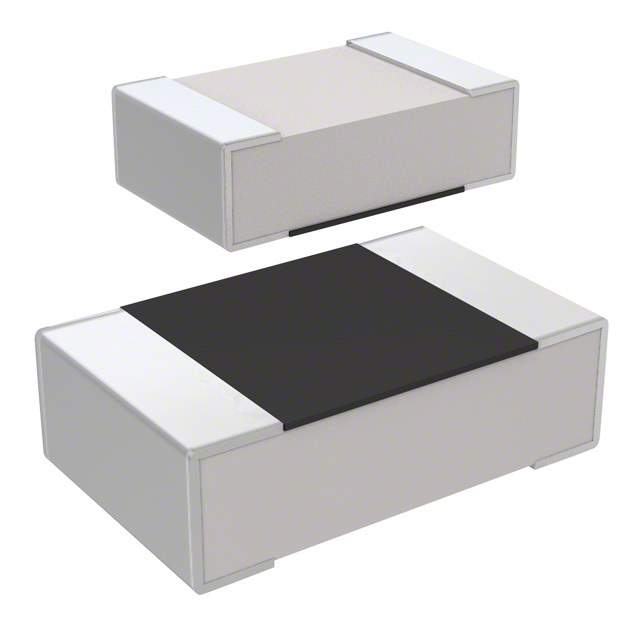

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Samsung Electro-Mechanics
Series RC
Package Tape & Reel
Resistance 4.3 kOhms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1276-5304-1,1276-5304-2,1276-5304-6
Standard Package 5,000
Win Source Part Number 972184-RC2012F432CS
Ultra Librarian 3D Model Ultra Librarian RC2012F432CS CAD Model

Description

The Samsung Electro-Mechanics RC is a chip resistor - surface mount with a moisture-resistant feature.

  • Package: 0805 (2012 Metric)
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -55°C ~ 155°C
  • Series: RC
  • Category: Resistors
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8533.21.0030
  • Standard Package: 5,000
  • Resistance: 4.3 kOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
