STPS2H100ZFY - Power Schottky Rectifier from STMicroelectronics

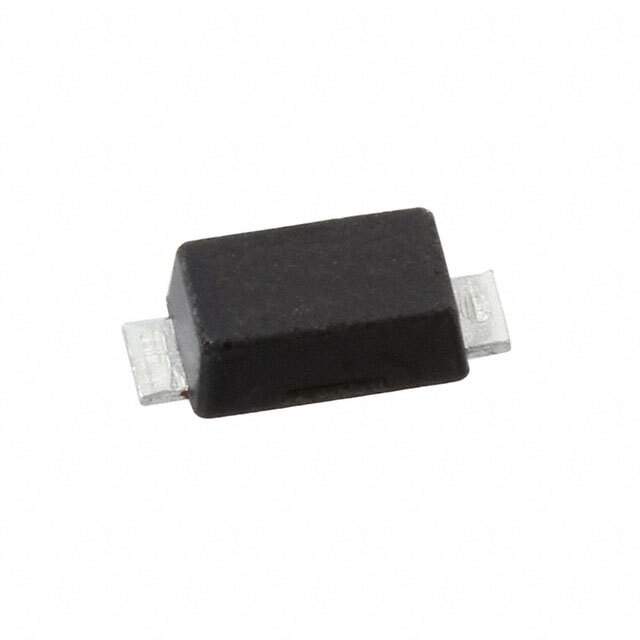

The STPS2H100ZFY is a robust power Schottky rectifier designed by STMicroelectronics, a global semiconductor leader known for its cutting-edge technology. This component is specifically engineered to offer a high efficiency and reliability in applications that require rectification and power management. The STPS2H100ZFY is housed in a PPAK package and is particularly suitable for switch mode power supplies and high-frequency DC to DC converters.

Key Features

• High Junction Temperature: With a maximum operating junction temperature of 175°C, the STPS2H100ZFY is capable of sustaining high thermal conditions, making it ideal for demanding applications.
• Low Forward Voltage Drop: The device ensures a low forward voltage drop, which reduces power losses and improves efficiency in the system.
• High Surge Capability: Its high surge current capability makes it resilient to sudden overvoltages, ensuring a reliable performance in applications where power surges are common.
• Avalanche Rated: The rectifier is designed to be avalanche rated, providing an additional layer of protection against unexpected voltage transients.

Applications

• Switch mode power supplies (SMPS)
• DC to DC converters
• Free-wheeling diodes in converters and motor control circuits
• Battery charging systems
• Power management systems

The STPS2H100ZFY's advanced features make it an excellent choice for designers looking for a power rectifier that offers both high performance and reliability. Its construction is optimized for minimal conduction losses and reduced thermal resistance. STMicroelectronics has ensured that this component meets the stringent requirements of a wide range of electronic circuits, solidifying its place as a go-to device for power rectification needs.
