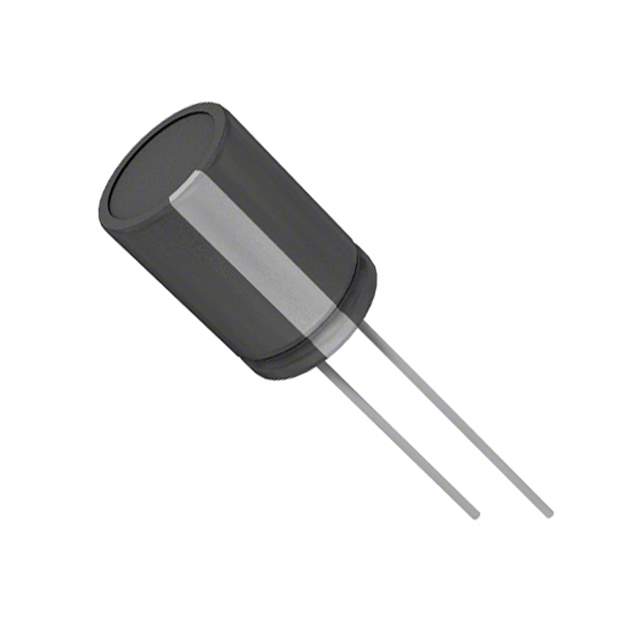

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 7000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 448 mA @ 120 Hz
Impedance 130 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 2,000
Win Source Part Number 1331356-25YXJ330M8X11.5
Ultra Librarian 3D Model Ultra Librarian 25YXJ330M8X11.5 CAD Model

Description

The Rubycon series aluminum electrolytic capacitors are designed for general purpose applications.

  • Capacitance: 330 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Impedance: 130 mOhms
  • ESR: Not Specified
  • Lifetime: 7000 hours @ 105°C
  • Polarization: Polarized
  • Mounting Style: Through-Hole
  • Package/Case: Radial, Can
  • Height: 13.00mm
  • Ripple Current (Low Frequency): 448 mA @ 120 Hz
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
