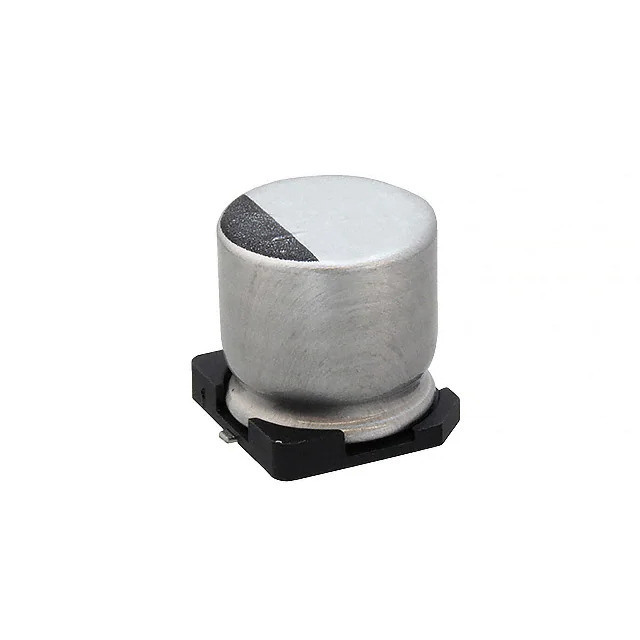

Same model may have multiple batches, images only for reference.
25SEV330M10X10.5 Rubycon
Same model may have multiple batches, images only for reference.

25SEV330M10X10.5

Part No 25SEV330M10X10.5
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 25V SMD / 330 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SEV
Package Tape & Reel
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 680 mA @ 120 Hz
Ripple Current @ High Frequency 816 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360276-25SEV330M10X10.5
Ultra Librarian 3D Model Ultra Librarian 25SEV330M10X10.5 CAD Model

Description

The Rubycon 1360276-25SEV330M10X10.5 is an aluminum electrolytic capacitor designed for automotive applications.

  • Manufacturer: Rubycon
  • Capacitance: 330μF
  • Voltage Rating: 25V
  • Series: SEV
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 680mA @ 120Hz
  • Ripple Current @ High Frequency: 816mA @ 10kHz
  • Size: 0.394" diameter
  • Height: 0.413"
  • Mounting Type: Surface Mount
  • HTSUS Code: 8532.22.0020
  • Lifetime: 2000 hours @ 85°C
  • Application: Automotive
  • Package: Tape & Reel
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
