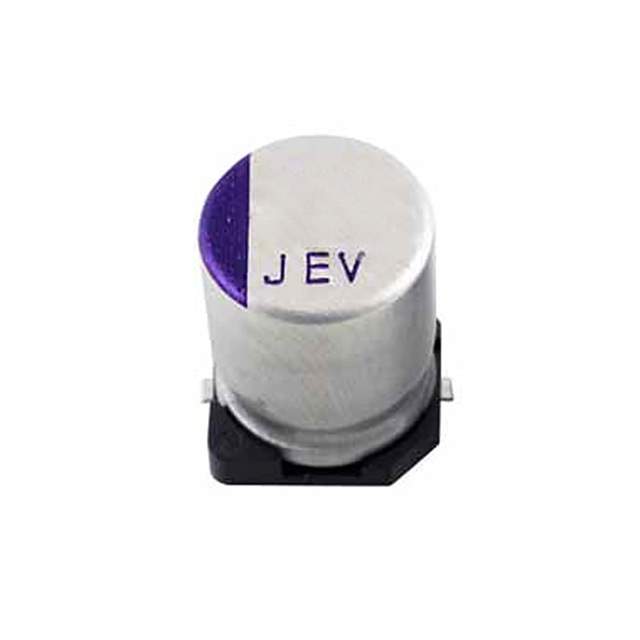

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Rubycon
Series PEV
Package Tape & Reel
Type Hybrid
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) 20mOhm
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 125 mA @ 120 Hz
Ripple Current @ High Frequency 2.5 A @ 100 kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 25PEV330M100010X10.5TR,25PEV330M100010X10.5DKR-ND,25PEV330M100010X10.5CT,25PEV330M100010X10.5DKR,25PEV330M10X10.5DKR,25PEV330M10X10.5TR,25PEV330M100010X10.5,25PEV330M100010X10.5CT-ND,25PEV330M10X10.5CT,25PEV330M100010X10.5TR-ND
Standard Package 500
Win Source Part Number 983671-25PEV330M10X10.5
Ultra Librarian 3D Model Ultra Librarian 25PEV330M10X10.5 CAD Model

Description

The 983671-25PEV330M10X10.5 is a hybrid aluminum-polymer capacitor from Rubycon's PEV series.

  • Capacitance: 330 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Application: Automotive
  • Lifetime: 10000 hours @ 105°C
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Height: 0.413" (10.50mm)
  • ESR (Equivalent Series Resistance): 20mOhm
  • Package: Radial, Can - SMD
  • Standard Package: 500
  • AEC-Q200: Yes
  • REACH: Unaffected
  • Ripple Current (Low Frequency): 125 mA @ 120 Hz
  • Ripple Current (High Frequency): 2.5 A @ 100 kHz
