Same model may have multiple batches, images only for reference.

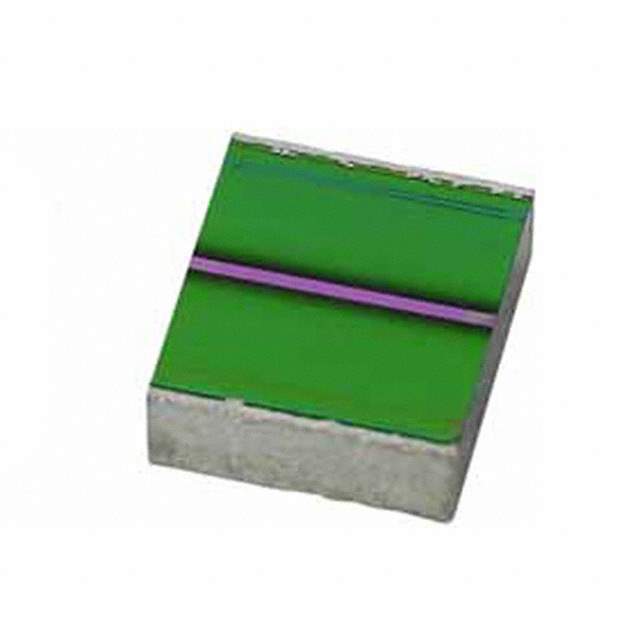

25MU105MA23216 Real Image
Same model may have multiple batches, images only for reference.

25MU105MA23216

Part No 25MU105MA23216
Manufacturer Rubycon
Catalog Film Capacitors
Description CAP FILM 1UF 20% 25VDC 1206 / 1 µF Film Capacitor 25V Acrylic, Metallized 1206 (3216 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Rubycon
Series PMLCAP®, MU
Package Tape & Reel
Capacitance 1 µF
Tolerance ±20%
Voltage Rating - DC 25V
Dielectric Material Acrylic, Metallized
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.063" (1.60mm)
Termination Solder Pads
Applications DC Link, DC Filtering
Standard Package 2,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1350298-25MU105MA23216
Ultra Librarian 3D Model Ultra Librarian 25MU105MA23216 CAD Model

Description

The Rubycon MU series PMLCAP® film capacitor is a DC link and DC filtering capacitor with a capacitance of 1 µF and a voltage rating of 25 V.

  • Application: DC Link, DC Filtering
  • Capacitance: 1 µF
  • Voltage Rating: 25 V
  • Package: 1206 (3216 Metric)
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Tolerance: ±20%
  • Lifetime: Not Specified
  • Dielectric Material: Acrylic, Metallized
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 125°C
