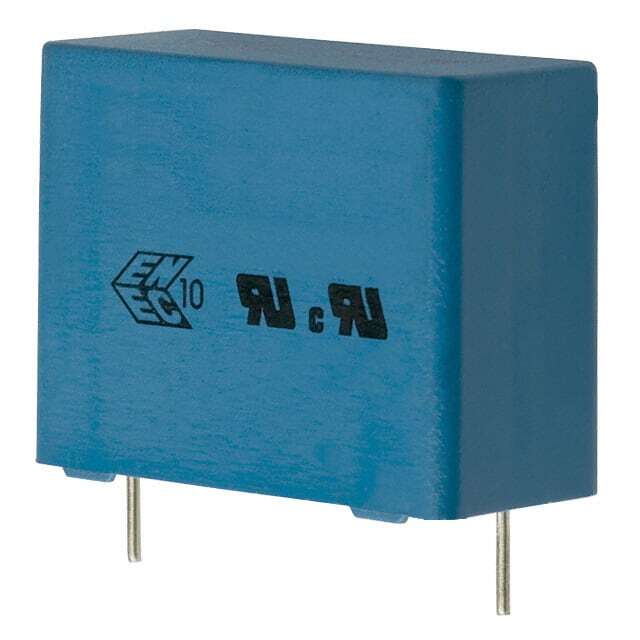

B32914A3105M189 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B32914A3105M189

Part No B32914A3105M189
Manufacturer EPCOS (TDK)
Catalog Film Capacitors
Description CAP FILM 1UF 20% 760VDC RADIAL / 1 µF Film Capacitor 330V 760V Polypropylene (PP), Metallized Radial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr EPCOS - TDK Electronics
Series B3291*A/B3 - X1 Standard
Package Tape & Reel (TR)
Product Status Active
Capacitance 1 µF
Tolerance ±20%
Voltage Rating - AC 330V
Voltage Rating - DC 760V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 110°C
Mounting Type Through Hole
Package / Case Radial
Size / Dimension 1.240" L x 0.531" W (31.50mm x 13.50mm)
Height - Seated (Max) 0.906" (23.00mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications EMI, RFI Suppression
Ratings X1
Features -
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0070
Win Source Part Number 1360526-B32914A3105M189
Ultra Librarian 3D Model Ultra Librarian B32914A3105M189 CAD Model

Description

The B32914A3105M189 is a film capacitor from the B3291*A/B3 - X1 Standard series by EPCOS - TDK Electronics.

  • Application: EMI and RFI suppression
  • Capacitance: 1µF
  • Tolerance: ±20%
  • Voltage Rating (AC): 330V AC
  • Voltage Rating (DC): 760V DC
  • Operating Temperature: -40°C to 110°C
  • Mounting Type: Through Hole
  • Package: Radial
