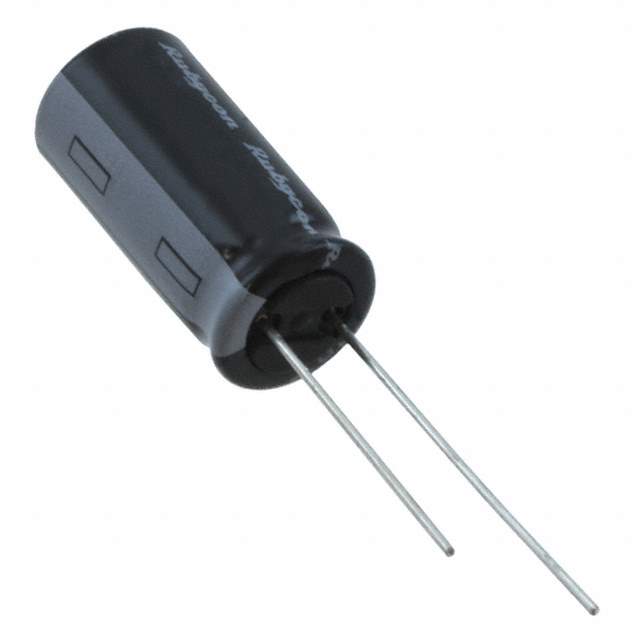

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PK
Package Bulk
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 250 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 150 mA @ 120 Hz
Ripple Current @ High Frequency 225 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1339933-250PK22MEFC10X16
Ultra Librarian 3D Model Ultra Librarian 250PK22MEFC10X16 CAD Model

Description

The 250PK22MEFC10X16 is an aluminum electrolytic capacitor from the PK series.

  • Capacitance: 22 μF
  • Voltage Rating: 250 V
  • Tolerance: ±20%
  • Ripple Current: 150 mA @ 120 Hz and 225 mA @ 10 kHz
  • Mounting Type: Through Hole
  • Packaging: Bulk
  • Diameter: 0.394" (10.00mm)
  • Height: 0.689" (17.50mm)
  • Polarization: Polarized
  • Lead Spacing: 0.197" (5.00mm)
  • Lifetime: 2000 Hrs @ 85°C
  • ECCN: EAR99
  • REACH Status: Unaffected
