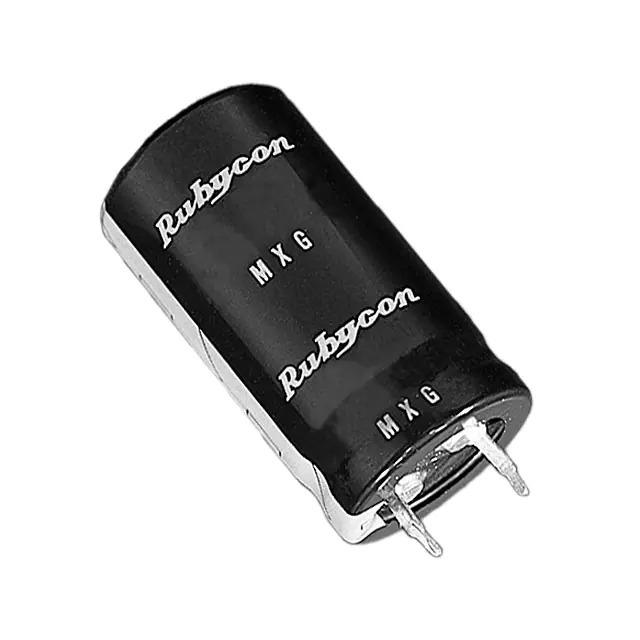

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MXG
Package Bulk
Product Status Active
Capacitance 390 µF
Tolerance ±20%
Voltage - Rated 250 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.76 A @ 120 Hz
Ripple Current @ High Frequency 2.64 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.787" Dia (20.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360739-250MXG390MEFCSN20X40
Ultra Librarian 3D Model Ultra Librarian 250MXG390MEFCSN20X40 CAD Model

Description

The Rubycon 1360739-250MXG390MEFCSN20X40 is an aluminum electrolytic capacitor with a capacitance of 390 µF and a voltage rating of 250 V.

  • Capacitance: 390 µF
  • Voltage Rating: 250 V
  • Tolerance: ±20%
  • Application: General Purpose
  • Ripple Current (Low Frequency): 1.76 A @ 120 Hz
  • Ripple Current (High Frequency): 2.64 A @ 10 kHz
  • Lead Spacing: 10.00mm
  • Size: 20.00mm Diameter
  • Height (Seated): 42.00mm
  • Mounting Type: Through-Hole
  • Package: Radial, Can - Snap-In
  • Lifetime: 3000 hours @ 105°C
  • Series: MXG
  • Packaging: Bulk
  • Product Status: Active
  • REACH Status: Unaffected
  • ESR: Not Specified
  • Ratings: Not Specified
  • HTSUS Code: 8532.22.0040
