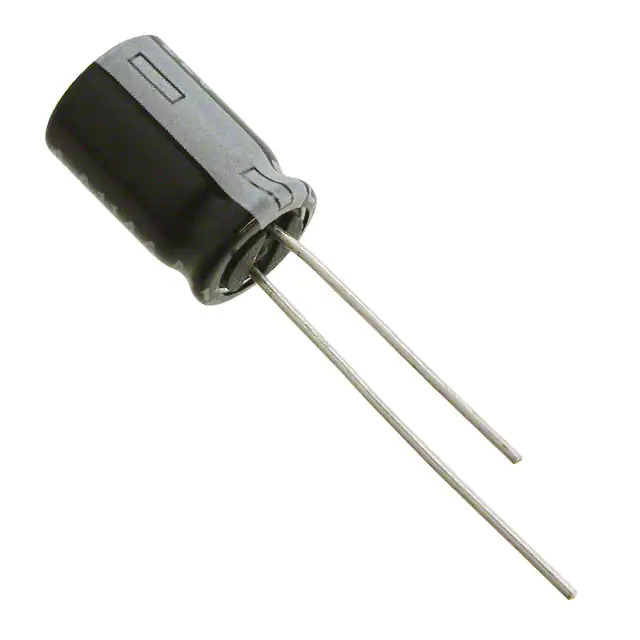

16ZLG680MEFC8X20 Rubycon
Same model may have multiple batches, images only for reference.

16ZLG680MEFC8X20

Part No 16ZLG680MEFC8X20
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 680UF 20% 16V RADIAL / 680 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLG
Package Bulk
Product Status Active
Capacitance 680 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 880 mA @ 120 Hz
Ripple Current @ High Frequency 1.6 A @ 100 kHz
Impedance 20 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357986-16ZLG680MEFC8X20
Ultra Librarian 3D Model Ultra Librarian 16ZLG680MEFC8X20 CAD Model

Description

The Rubycon 1357986-16ZLG680MEFC8X20 is a high-quality aluminum electrolytic capacitor.

  • Capacitance: 680 µF
  • Voltage Rating: 16 V
  • Application: General-Purpose
  • Operating Temperature Range: -40°C to 105°C
  • Package: Radial can
  • Size: 8.00mm diameter
  • Height: 22.00mm
  • Lifetime: 3000 hours @ 105°C
  • Ripple Current @ Low Frequency: 880 mA @ 120 Hz
  • Ripple Current @ High Frequency: 1.6 A @ 100 kHz
  • Packaging: Bulk
