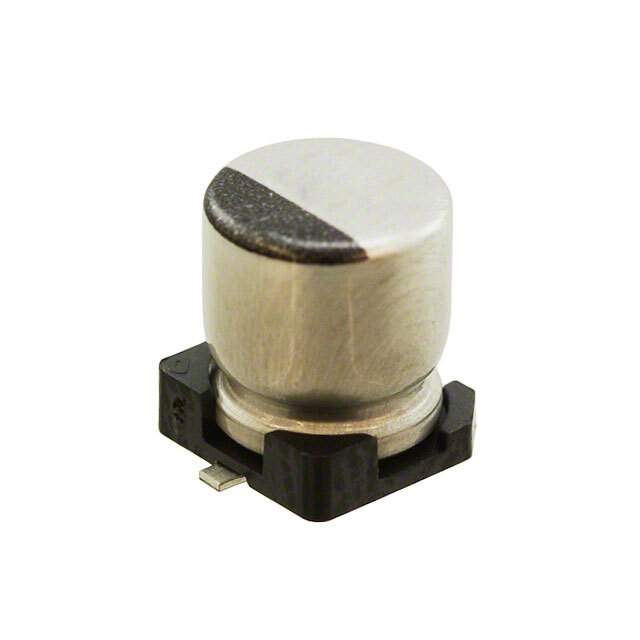

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Estimated Pruduction Lead Time 39 Weeks
Features Aluminum Electrolytic Capacitors Radial, Can - SMD - 2000 Hrs @ 105°C
Manufacturer Rubycon
Series TZV
Package Reel - TR
Operating Temperature Range -55°C ~ 105°C
Mounting Surface Mount
Package Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-1544-6, 1189-1544-2, 16TZV47M5X61, 1189-1544-1
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 854104-16TZV47M5X6.1
Ultra Librarian 3D Model Ultra Librarian 16TZV47M5X6.1 CAD Model

Description

The Rubycon TZV series aluminum electrolytic capacitors are a great choice for electronic devices that require capacitors.

  • Package: Reel - TR
  • Operating Temperature: -55°C to 105°C
  • Package Type: Radial, Can - SMD
  • Feature: 2000 Hrs @ 105°C
  • Mounting: Surface Mounted
  • ECCN: EAR99
