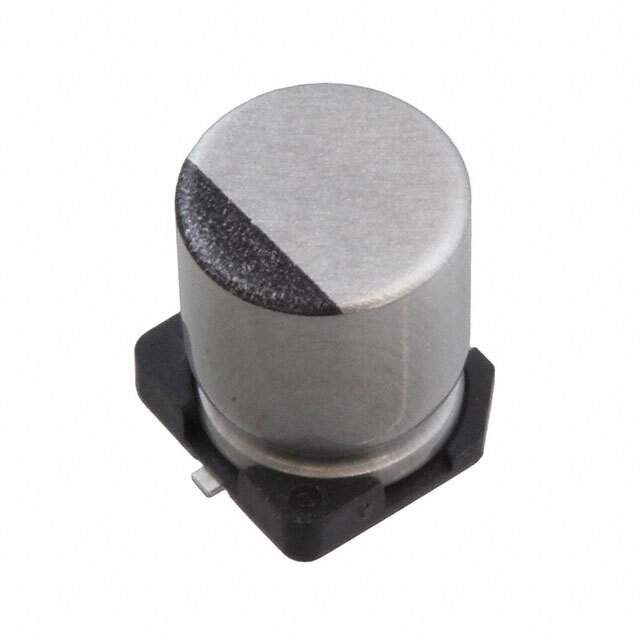

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Reel - TR
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 165 mA @ 120 Hz
Ripple Current @ High Frequency 198 mA @ 10 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-2398-6,16SEV220M6.3X8-ND,1189-2398-1,1189-2398-2
Standard Package 900
Win Source Part Number 1329531-16SEV220M6.3X8
Ultra Librarian 3D Model Ultra Librarian 16SEV220M6.3X8 CAD Model

Description

The Rubycon 16SEV220M6.3X8 is a high-quality aluminum electrolytic capacitor designed for use in automotive applications.

  • Capacitance: 220uF
  • Voltage Rating: 16V
  • Package: Radial, can - SMD
  • Diameter: 6.3mm
  • Height: 8mm
  • Lifetime: 2000 hours @ 85 degrees Celsius
