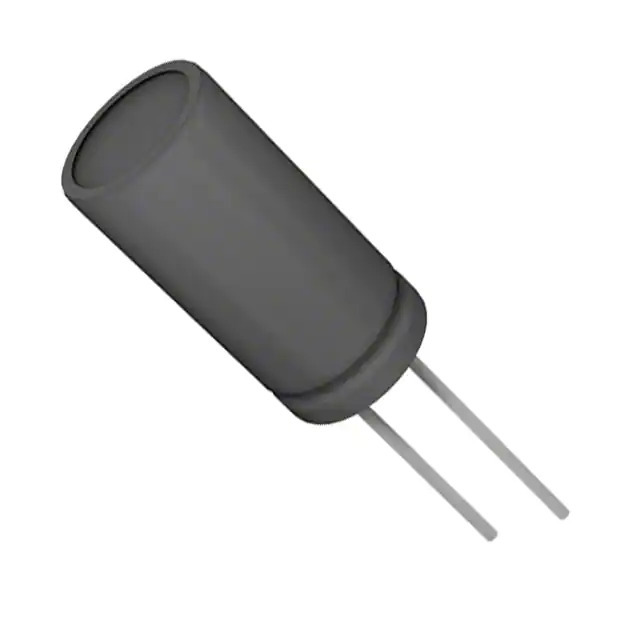

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Bulk
Product Status Active
Capacitance 2200 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.12 A @ 120 Hz
Ripple Current @ High Frequency 1.4 A @ 100 kHz
Impedance 46 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357907-10YXJ2200M10X20
Ultra Librarian 3D Model Ultra Librarian 10YXJ2200M10X20 CAD Model

Description

The Rubycon 1357907-10YXJ2200M10X20 capacitor is an aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 2200 µF
  • Voltage Rating: 10 V
  • Polarization: Polarized
  • Tolerance: ±20%
  • Package: Radial, Can
  • Size: 0.394" Dia x 0.866" H
  • Lead Spacing: 0.197"
  • Mounting: Through Hole
  • Lifetime: 8000 hours @ 105°C
  • Ripple Current (Low Freq): 1.12 A @ 120 Hz
  • Ripple Current (High Freq): 1.4 A @ 100 kHz
