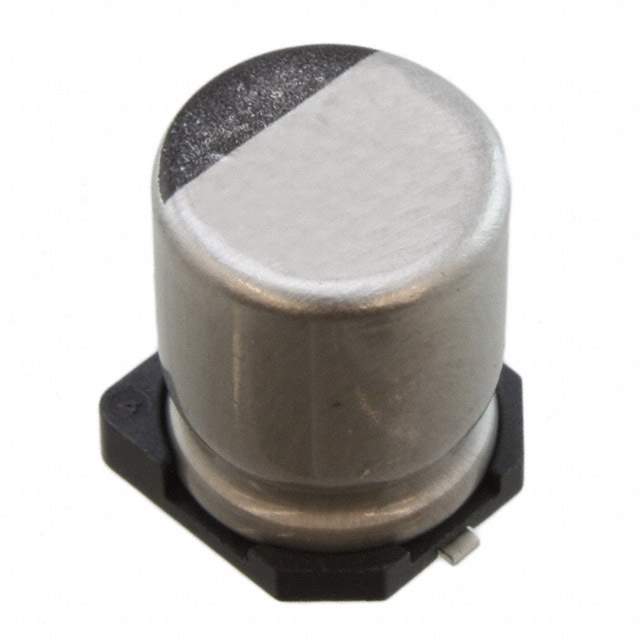

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Reel - TR
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 510 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Impedance 80 mOhms
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Surface Mount
Case / Package Radial, Can - SMD
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-1521-6,1189-1521-1,10TZV1000M10X105,1189-1521-2
Standard Package 500
Win Source Part Number 1329539-10TZV1000M10X10.5
Ultra Librarian 3D Model Ultra Librarian 10TZV1000M10X10.5 CAD Model

Description

The Rubycon 1329539-10TZV1000M10X10.5 is an aluminum electrolytic capacitor that is designed for automotive applications.

  • Packaging: Reel-TR
  • Size/Dimension: 0.394" Dia (10.00mm)
  • Height: 0.413" (10.50mm)
  • Mounting Type: Surface Mount
  • Capacitance: 1000 µF
  • Tolerance: ±20%
  • Voltage: 10 V
  • AEC-Q200 Rating: Yes
  • Impedance: 80 mOhms
  • Lifetime: 2000 Hrs @ 105°C
  • Polarization: Polarized
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8532.22.0020
  • ROHS3 Compliant: Yes
  • Ripple Current (Low Frequency): 510 mA @ 120 Hz
  • Ripple Current (High Frequency): 850 mA @ 100 kHz
