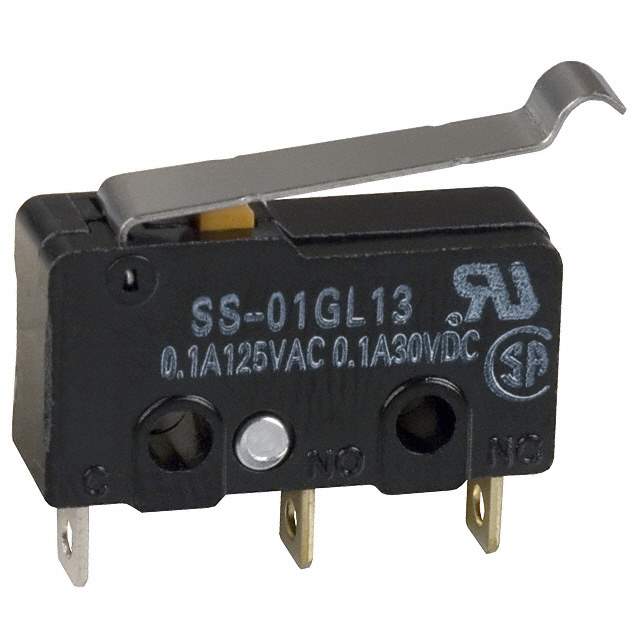

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS-01GL13,SW865,SS01GL13
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233577-SS-01GL13
Ultra Librarian 3D Model Ultra Librarian SS-01GL13 CAD Model

Description

The Omron Electronics Inc-EMC Div SS-01GL13 is a SPDT lever, simulated roller limit switch that is mounted on a chassis.

  • Ingress Protection Rating: IP40
  • Voltage Rating: 125VAC and 30VDC
  • Standard Package: 500 units
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Release Force: 6.118gf
  • Operating Force: 50gf
  • Differential Travel: 0.031 inches
  • Overtravel: 0.047 inches
  • Operating Position: 0.420 inches
  • Temperature Range: -25°C to 85°C
  • Circuit: SPDT
  • Actuator Type: Lever, simulated roller
  • Mounting Type: Chassis
