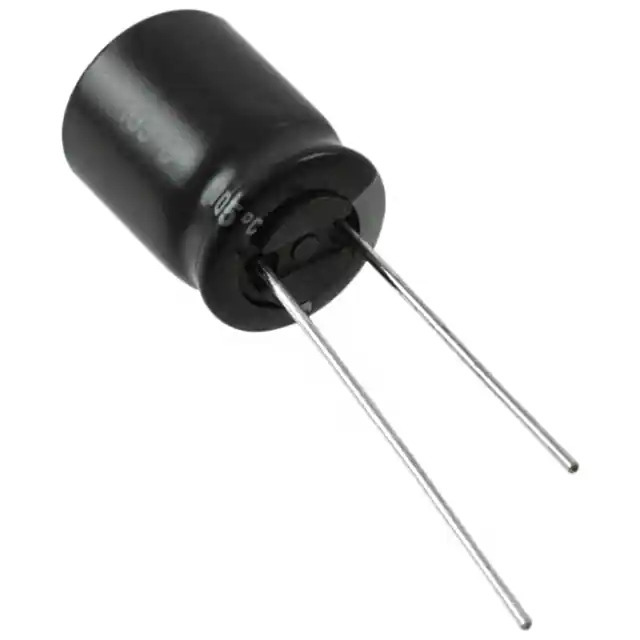

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZL
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 100 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 440 mA @ 120 Hz
Impedance 120 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.984" (25.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358224-100ZL100MEFC10X23
Ultra Librarian 3D Model Ultra Librarian 100ZL100MEFC10X23 CAD Model

Description

The Rubycon 1358224-100ZL100MEFC10X23 is an aluminum electrolytic capacitor with a capacitance of 100 µF and a voltage rating of 100 V.

  • Manufacturer: Rubycon
  • Application: General Purpose
  • Capacitance: 100 µF
  • Voltage Rating: 100 V
  • Temperature Range: -40°C to 105°C
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 440 mA @ 120 Hz
  • Lifetime: 4000 hours @ 105°C
  • Mounting Type: Through Hole
  • Series: ZL
  • Package: Radial, Can
  • Product Status: Active
