Same model may have multiple batches, images only for reference.

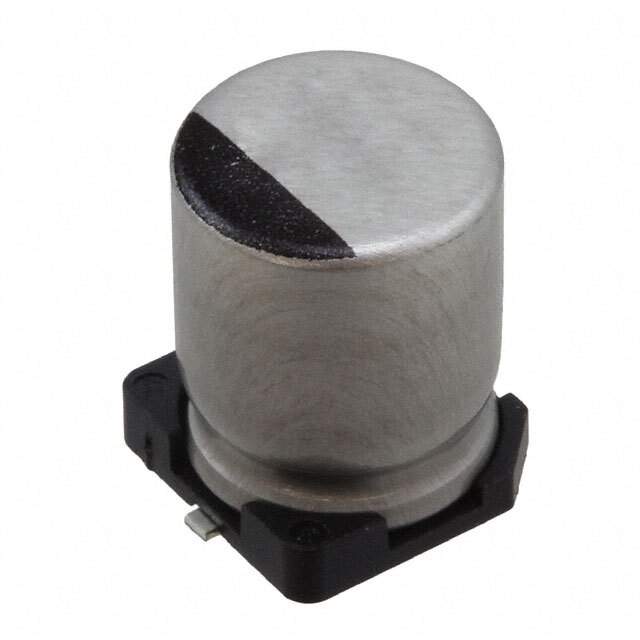

100SGV10M8X10.5 Real Image
Same model may have multiple batches, images only for reference.

100SGV10M8X10.5

Part No 100SGV10M8X10.5
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 10UF 20% 100V SMD / 10 µF 100 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SGV
Package Tape & Reel
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 65 mA @ 120 Hz
Ripple Current @ High Frequency 97.5 mA @ 10 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1351161-100SGV10M8X10.5
Ultra Librarian 3D Model Ultra Librarian 100SGV10M8X10.5 CAD Model

Description

The Rubycon 1351161-100SGV10M8X10.5 aluminum electrolytic capacitor is a polarized capacitor with a capacitance of 10 µF and a voltage rating of 100 V.

  • Series: SGV
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Diameter: 0.315" (8.00mm)
  • Height (Seated): 0.413" (10.50mm)
  • Application: Automotive
  • Tolerance: ±20%
  • ESR: -
  • Lifetime @ Temperature: 2000 hours @ 105°C
  • Operating Temperature: -40°C to 105°C
  • Rating: AEC-Q200 rated
  • Compliance: ROHS3 compliant
