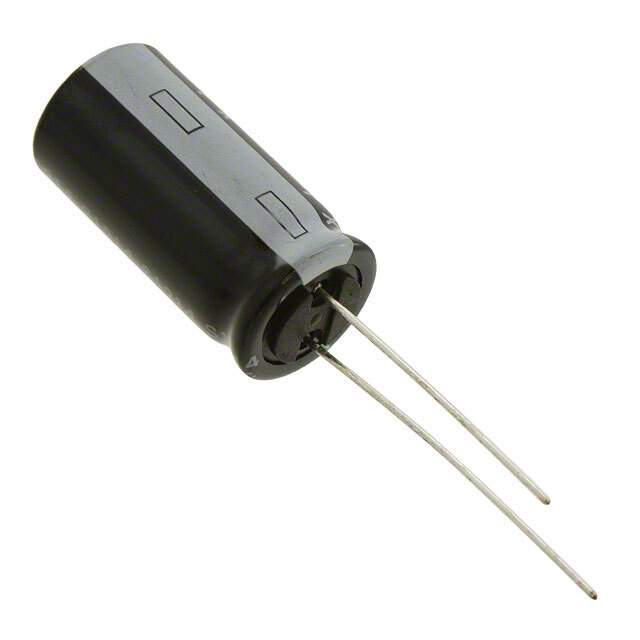

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 560 mA @ 120 Hz
Ripple Current @ High Frequency 672 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.846" (21.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-3673-2,100PX220MEFC12.5X20-ND,1189-3673-2-ND,1189-3684
Standard Package 1,000
Win Source Part Number 967872-100PX220MEFC12.5X20
Ultra Librarian 3D Model Ultra Librarian 100PX220MEFC12.5X20 CAD Model

Description

The 967872-100PX220MEFC12.5X20 is an aluminum electrolytic capacitor manufactured by Rubycon.

  • Capacitance: 220μF
  • Tolerance: ±20%
  • Voltage Rating: 100V
  • Lifetime: 2000 Hrs @ 105°C
  • Polarization: Polarized
  • Packaging: Radial, can
  • Surface Mount Land Size: -
  • Other Names: 1189-3673-2, 100PX220MEFC12.5X20-ND, 1189-3673-2-ND, and 1189-3684
