Same model may have multiple batches, images only for reference.

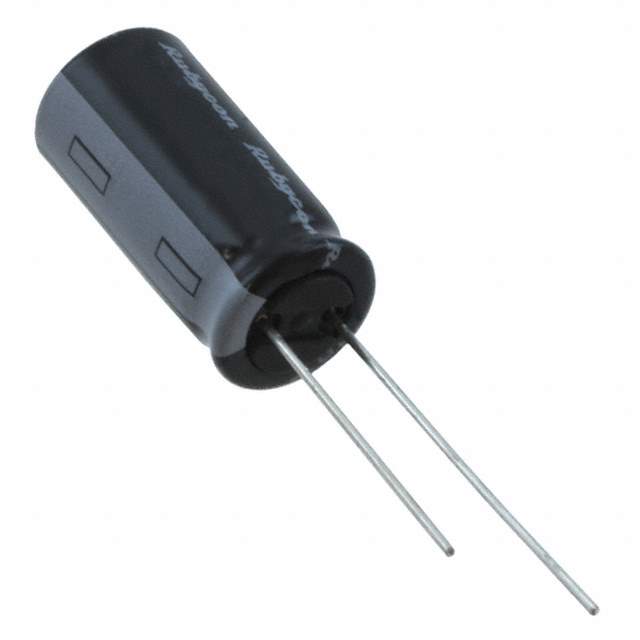

100PX100MEFC10X16 Real Image
Same model may have multiple batches, images only for reference.

100PX100MEFC10X16

Part No 100PX100MEFC10X16
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 100V RADIAL / 100 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Package Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 100 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 290 mA @ 120 Hz
Ripple Current @ High Frequency 348 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000
Win Source Part Number 1129577-100PX100MEFC10X16
Ultra Librarian 3D Model Ultra Librarian 100PX100MEFC10X16 CAD Model

Description

The 1129577-100PX100MEFC10X16 is a radial, can-type aluminum electrolytic capacitor from Rubycon with a capacitance of 100 µF and a voltage rating of 100 V.

  • Capacitance: 100 µF
  • Voltage Rating: 100 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): -
  • Application: ideal for general-purpose applications
  • Polarized: yes
  • Mounting Type: through-hole
  • Ripple Current (Low Frequency): 290 mA @ 120 Hz
  • Ripple Current (High Frequency): 348 mA @ 10 kHz
  • Lifetime: 2000 hours @ 105°C
  • Diameter: 0.394" (10.00mm)
  • Series: PX series
  • Packaging: bulk
