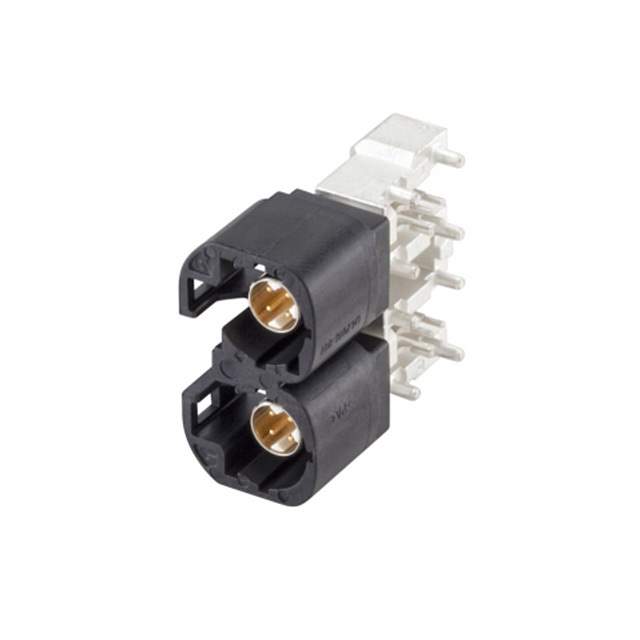

Same model may have multiple batches, images only for reference.

D4S21J-40MA5-A

Name: D4S21J-40MA5-A
Brand: Rosenberger
SKU: 1184610
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	D4S21J-40MA5-A
Manufacturer	Rosenberger
Catalog	Coaxial Connectors (RF)
Description	CONN HSD FAKRA PLUG R/A 100OHM / HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole, Right Angle Solder
Datasheet	D4S21J-40MA5-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Coaxial Connectors (RF)
Mfr	Rosenberger
Series	HSD®
Package	Tape & Reel
Connector Style	HSD®, Fakra, Quadraxial
Connector Type	Plug, Male Pin
Contact Termination	Solder
Shield Termination	Solder
Impedance	100Ohm
Mounting Type	Through Hole, Right Angle
Fastening Type	Latch Lock
Frequency - Max	2 GHz
Number of Ports	2
Features	Code A
Housing Color	Black, Graphite
Center Contact Material	Bronze
Body Material	Brass
Body Finish	Nickel
Center Contact Plating	Gold
Dielectric Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-40°C ~ 105°C
Voltage Rating	100 V
Mating Cycles	25
Insertion Loss	0.10dB
Base Product Number	D4S21J
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4010
Other Names	1868-1537-1,1868-1537-2,1868-1537-6
Standard Package	200
Win Source Part Number	1184610-D4S21J-40MA5-A
Ultra Librarian 3D Model	Ultra Librarian D4S21J-40MA5-A CAD Model

Alternative Products

Description

The D4S21J-40MA5-A from Rosenberger is a high-quality coaxial connector that is designed to provide reliable and efficient connectivity.

Applications: Data communication, military, and aerospace.
Fastening Type: Latch Lock
Center Contact Plating: Gold
Package: Tape and Reel
Standard Package: 200
