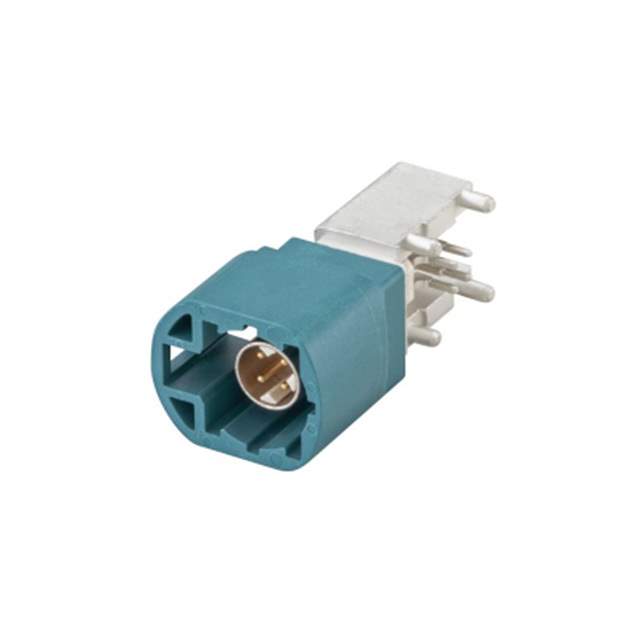

D4S20L-40MA5-Z Real Image
Same model may have multiple batches, images only for reference.

D4S20L-40MA5-Z

Part No D4S20L-40MA5-Z
Manufacturer Rosenberger
Catalog Coaxial Connectors (RF)
Description CONN HSD FAKRA PLUG R/A 100OHM / HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole, Right Angle Solder
Datasheet
D4S20L-40MA5-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Rosenberger
Series HSD®
Package Tape & Reel
Connector Style HSD®, Fakra, Quadraxial
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 100Ohm
Mounting Type Through Hole, Right Angle
Fastening Type Latch Lock
Frequency - Max 2 GHz
Number of Ports 1
Features Code Z
Housing Color Blue, Water
Center Contact Material Bronze
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 100 V
Mating Cycles 25
Insertion Loss 0.10dB
Base Product Number D4S20L
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 1868-1528-1,1868-1528-2,1868-1528-6
Standard Package 200
Win Source Part Number 1009779-D4S20L-40MA5-Z
Ultra Librarian 3D Model Ultra Librarian D4S20L-40MA5-Z CAD Model

Description

The D4S20L-40MA5-Z is a coaxial connector from Rosenberger's HSD® series.

  • Connector Type: Plug with male pin
  • Locking Type: Latch Lock
  • Impedance: 100Ω
  • Maximum Voltage: 100V
  • Frequency Range: Up to 2GHz
  • Insertion Loss: 0.10dB
  • Shielding: Shielded
  • Termination: Solder
  • Mounting Type: Through-Hole, Right-Angle
  • Housing Color: Blue, Water
  • Application: RF applications
