Same model may have multiple batches, images only for reference.

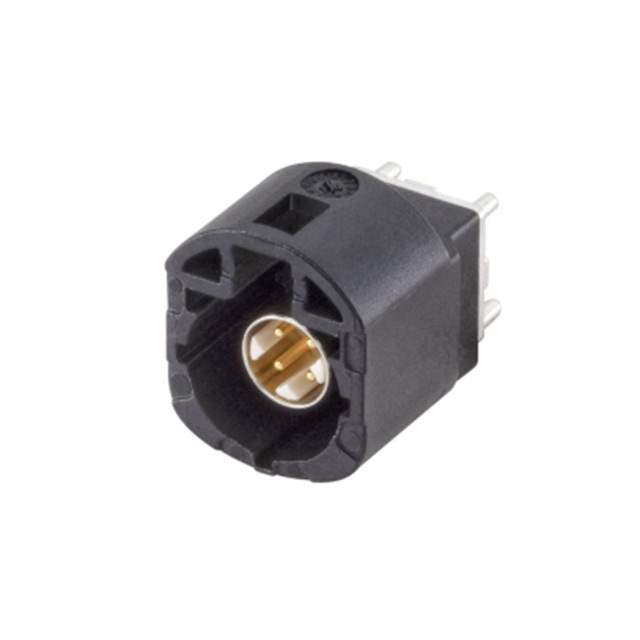

D4S12H-40MA5-A Real Image
Same model may have multiple batches, images only for reference.

D4S12H-40MA5-A

Part No D4S12H-40MA5-A
Manufacturer Rosenberger Hochfrequenztechnik GmbH & Co. KG
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN HSD FAKRA PLUG STR 100OHM / HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100Ohm Through Hole Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)>Coaxial Connector (RF) Assemblies
Manufacturer Rosenberger
Packaging Reel - TR
Connector Style HSD®, Fakra, Quadraxial
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 100Ohm
Mounting Through Hole
Fastening Type Latch Lock
Frequency - Max 2 GHz
Number of Ports 1
Features Code A
Housing Color Black
Center Contact Material Brass
Body Material Brass
Body Finish Nickel
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 105°C
Voltage Rating 100 V
Mating Cycles 25
Insertion Loss 0.10dB
Base Product Number D4S12H
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Part Number 1868-1504-6INACTIVE,233486,1868-1504-6-ND,1868-1504-6,1868-1504-2,1868-1504-1
Standard Package 150
Win Source Part Number 1331952-D4S12H-40MA5-A
Ultra Librarian 3D Model Ultra Librarian D4S12H-40MA5-A CAD Model

Description

The D4S12H-40MA5-A is a coaxial connector assembly manufactured by Rosenberger.

  • Connector Type: Plug with a male pin
  • Fastening Type: Latch lock
  • Frequency: Up to 2 GHz
  • Impedance: 100Ohm
  • Temperature Range: -40°C to 105°C
  • Voltage Rating: 100 V
  • Mounting: Through-hole
  • Packaging: Reel of 150
