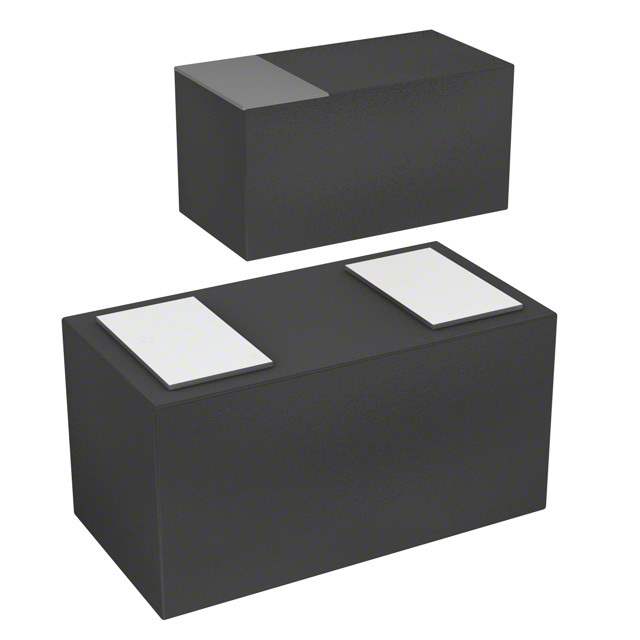

VS3V3BC1HST15R Real Image
Same model may have multiple batches, images only for reference.

VS3V3BC1HST15R

Part No VS3V3BC1HST15R
Manufacturer Rohm Semiconductor
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 8.5VC DSN0603-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Rohm Semiconductor
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 4V
Voltage - Clamping (Max) @ Ipp 8.5V
Current - Peak Pulse (10/1000µs) 8.2A (8/20µs)
Power - Peak Pulse 70W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TA)
Mounting Type Surface Mount
Package / Case 0201 (0603 Metric)
Supplier Device Package DSN0603-2, SOD-962, SMD0603
Base Product Number VS3V3
Standard Package 15,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 850587-VS3V3BC1HST15R
Ultra Librarian 3D Model Ultra Librarian VS3V3BC1HST15R CAD Model

Description

The 850587-VS3V3BC1HST15R is a TVS diode in a surface mount package.

  • Diode Type: Bidirectional
  • Reverse Standoff Voltage (Maximum): 3.3V
  • Breakdown Voltage (Minimum): 4V
  • Clamping Voltage: 8.5V @ Peak Pulse Current of 8.2A
  • Peak Pulse Power Rating: 70W
  • Application: General Purpose
  • Package: Tape and Reel
  • Standard Package: 15,000 pieces
  • Series: VS3V3
  • Manufacturer: Rohm Semiconductor
  • Operating Temperature Range: -55°C to 150°C
  • ECCN Code: EAR99
