Same model may have multiple batches, images only for reference.

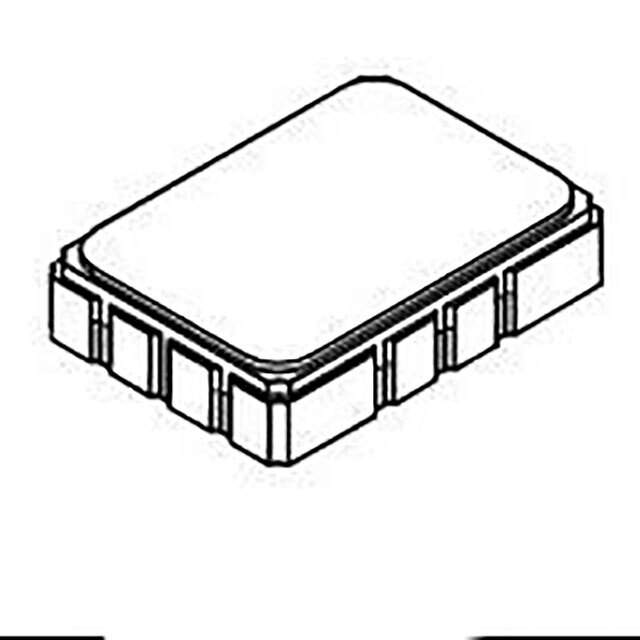

SF2242B Real Image
Same model may have multiple batches, images only for reference.

SF2242B

Part No SF2242B
Manufacturer RF Monolithics, Inc
Catalog SAW Filters
Datasheet
SF2242B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>SAW Filters
Mfr RFMi
Package Tape & Reel (TR),Tape & Reel (TR),Bag
Frequency - Center 40MHz
Bandwidth 5MHz
Insertion Loss 9.5dB
Applications General Purpose
Mounting SMD (SMT)
Package / Case 10-SMD, No Lead
Height (Max) 0.079" (2.00mm)
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Base Product Number SF2242
Other Names 2410-SF2242BTR,2410-SF2242B,2410-SF2242BTR2
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1275821-SF2242B
Ultra Librarian 3D Model Ultra Librarian SF2242B CAD Model

Description

The 1275821-SF2242B is a SAW filter from RFMi that is designed for general-purpose applications.

  • Bandwidth: 5MHz
  • Frequency Center: 40MHz
  • Insertion Loss: 9.5dB
  • Mounting: SMD (SMT) technology
  • Package/Case: 10-SMD, No Lead
  • Dimensions: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Height (max): 0.079" (2.00mm)
  • Package: tape and reel (TR), tape and reel (TR), and bag packages
  • Standard Package: 2,000 units
  • MSL Level: 1 (unlimited)
  • HTSUS code: 8541.60.0060
  • Other names: 2410-SF2242BTR, 2410-SF2242B, and 2410-SF2242BTR2
