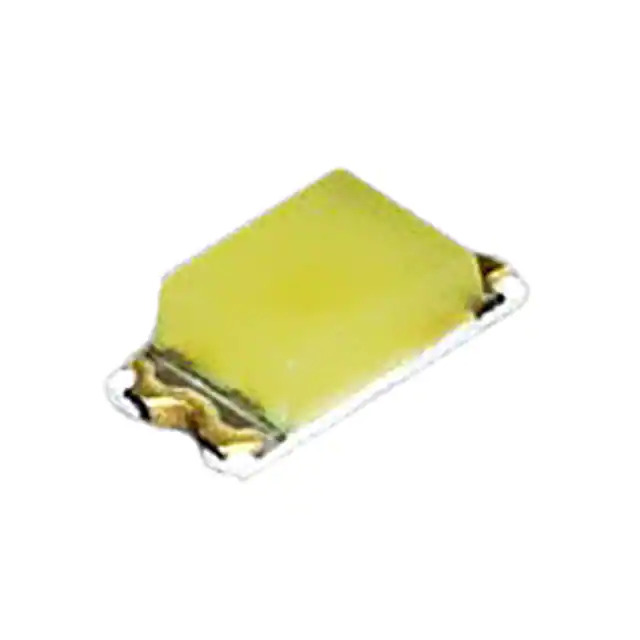

SMLD12E2N1WT86 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SMLD12E2N1WT86

Part No SMLD12E2N1WT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LONG LIFE TYPE MINI-MOLD CHIP LE
Datasheet
SMLD12E2N1WT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Rohm Semiconductor
Series SMLD12x
Package Tape & Reel
Product Status Active
Color Blue-Green
Configuration -
Lens Color White
Lens Transparency Diffused
Millicandela Rating 120mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2.9V
Current - Test 5mA
Viewing Angle -
Mounting Type Surface Mount
Wavelength - Dominant 505nm
Wavelength - Peak -
Features -
Package / Case 0603 (1608 Metric)
Supplier Device Package 1608 (0603)
Size / Dimension 1.60mm L x 0.80mm W
Height (Max) 0.65mm
Base Product Number SMLD12
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371934-SMLD12E2N1WT86
Ultra Librarian 3D Model Ultra Librarian SMLD12E2N1WT86 CAD Model

Description

The SMLD12E2N1WT86 is a blue-green LED indication discrete component from Rohm Semiconductor.

  • Series: SMLD12x
  • Package: 0603 (1608 Metric)
  • Shape: Rectangular
  • Lens: Flat Top
  • Dimensions: 1.60mm L x 0.80mm W
  • Lens Color: White, Diffused Transparency
  • Dominant Wavelength: 505nm
  • Forward Voltage: 2.9V
  • Millicandela Rating: 120mcd
  • Test Current: 5mA
  • Mounting: Surface Mountable
  • REACH: Unaffected
