Same model may have multiple batches, images only for reference.

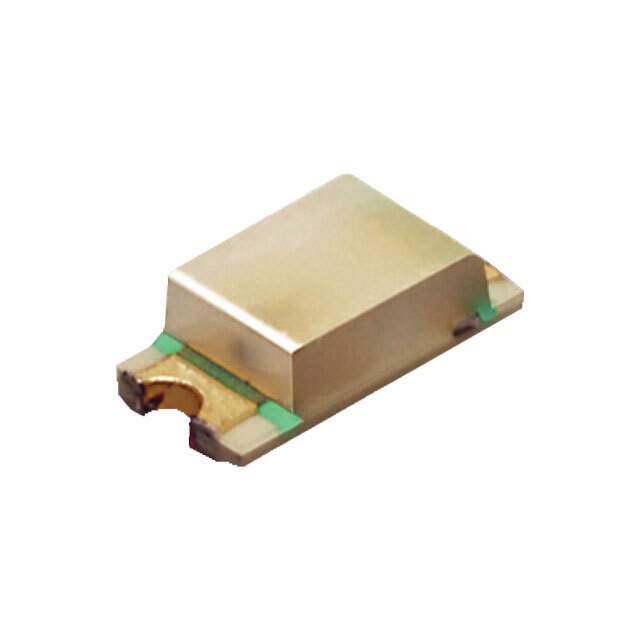

SML-D14DWT86C Real Image
Same model may have multiple batches, images only for reference.

SML-D14DWT86C

Part No SML-D14DWT86C
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED ORANGE 1608 SMD  /  Orange 605nm LED Indication - Discrete 2V 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Rohm Semiconductor
Series Automotive, AEC-Q101, SML-D14
Package Tape & Reel
Color Orange
Configuration Standard
Lens Color White
Millicandela Rating 200mcd
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 605nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 1608 (0603)
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.65mm
Base Product Number SML-D14
Other Names SML-D14DWT86CCT,SML-D14DWT86CAT,SML-D14DWT86CAV,SML-D14DWT86CAU,SML-D14DWT86CAW,SML-D14DWT86CDKR,SML-D14DWT86CTR
Standard Package 3,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241682-SML-D14DWT86C
Ultra Librarian 3D Model Ultra Librarian SML-D14DWT86C CAD Model

Description

The SML-D14DWT86C is an orange LED indication - discrete that is part of the automotive, AEC-Q101, SML-D14 series.

  • Millicandela Rating: 200mcd
  • Voltage - Forward (Vf) (Typ): 2V
  • Current - Test: 20mA
  • Wavelength - Dominant: 605nm
  • Package: Tape & reel
  • Standard Package: 3,000
