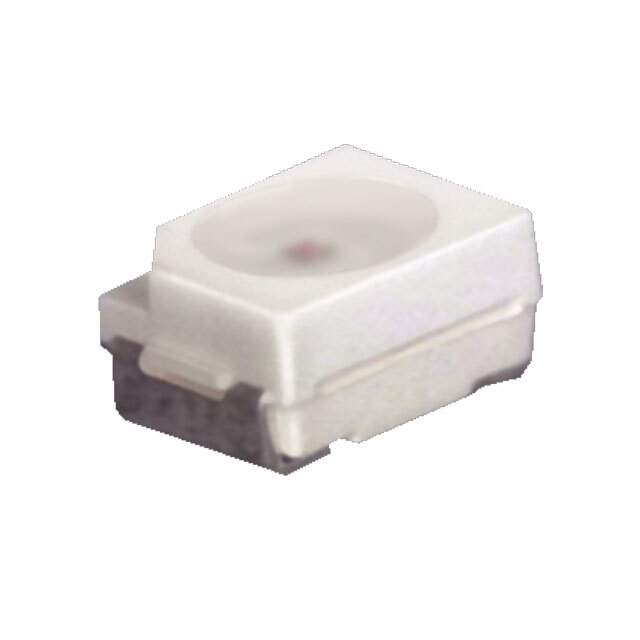

SML-Z14VTT86C Real Image
Same model may have multiple batches, images only for reference.

SML-Z14VTT86C

Part No SML-Z14VTT86C
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED RED CLEAR 3528 SMD / Red 630nm LED Indication - Discrete 1.9V 1411 (3528 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Rohm Semiconductor
Series Automotive, AEC-Q101, SML-Z14
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 112mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 1.9V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 630nm
Package / Case 1411 (3528 Metric)
Supplier Device Package 3528 (1411)
Dimension 3.50mm L x 2.80mm W
Height (Max) 2.10mm
Base Product Number SML-Z14
Other Names SML-Z14VTT86CTR,SML-Z14VTT86CAS,SML-Z14VTT86CDKR,SML-Z14VTT86CAR,SML-Z14VTT86CCT,SML-Z14VTT86CAQ,SML-Z14VTT86CAU,SML-Z14VTT86CAT
Standard Package 2,000
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241671-SML-Z14VTT86C
Ultra Librarian 3D Model Ultra Librarian SML-Z14VTT86C CAD Model

Description

The Rohm Semiconductor SML-Z14VTT86C is a red LED indication component that is commonly used in automotive applications.

  • Series: SML-Z14
  • Certification: AEC-Q101 certified
  • Lens Transparency: Clear
  • Viewing Angle: - degrees
  • Packaging: Tape & reel
  • Standard Package: 2,000
  • Height: 2.10mm
  • Dimension: 3.50mm L x 2.80mm W
