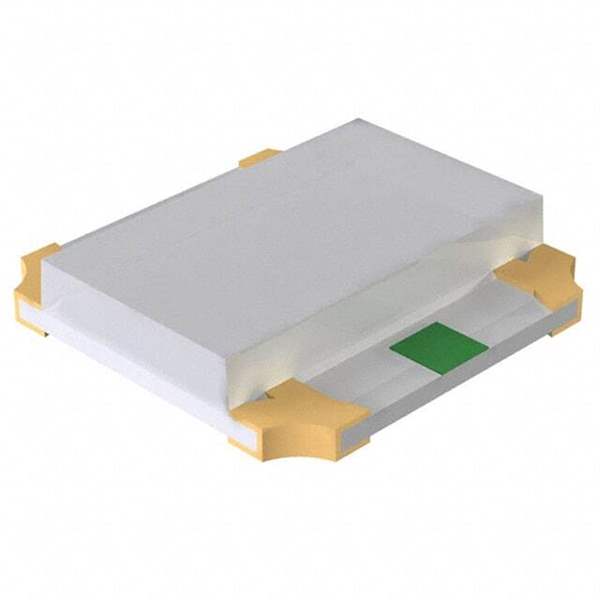

SML-P24MUWT86
Same model may have multiple batches, images only for reference.

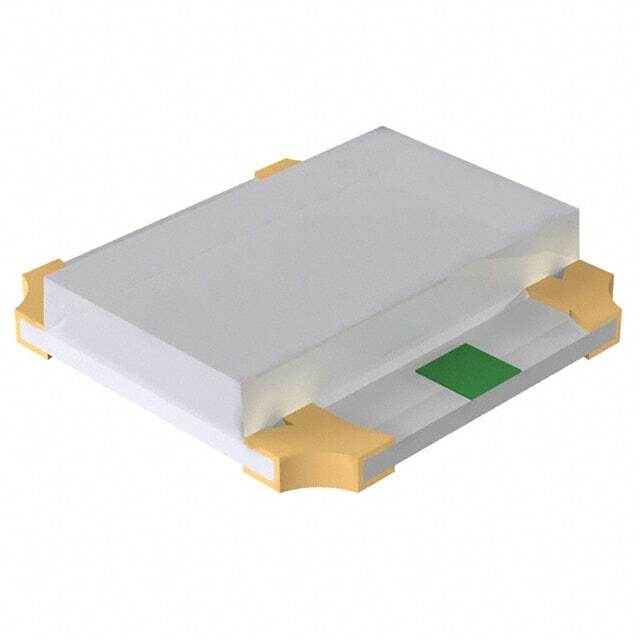

SML-P24MUWT86

Part No SML-P24MUWT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED GRN/RED DIFFUSED PICOLED SMD
Datasheet
SML-P24MUWT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Features Green, Red 572nm Green, 620nm Red LED Indication - Discrete 2.2V Green, 2.1V Red 0404 (1010 Metric)
Manufacturer Rohm Semiconductor
Series PicoLED™
Package Reel - TR
Part Status Not For New Designs
Mounting Surface Mount
Package 0404 (1010 Metric)
Case / Package PICOLED
Family Name SML-P24
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.40.2000
Other Part Number 846-SML-P24MUWT86DKR, 846-1040-1-ND, 846-1040-2-ND, SML-P24MUWT86-ND, 846-SML-P24MUWT86TR, SMLP24MUWT86, SML-P24MUWT86PQ, SML-P24MUWT86PP, 846-SML-P24MUWT86CT, SML-P24MUWT86MR, SML-P24MUWT86MQ, SML-P24MUWT86NR, SML-P24MUWT86MP, SML-P24MUWT86NQ, SML-P24MUWT86NP, SML-P24MUWT86PR, 846-1040-2, 846-1040-1, 846-1040-6-ND, 846-1040-6
Quantity per package 5000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 896221-SML-P24MUWT86
Ultra Librarian 3D Model Ultra Librarian SML-P24MUWT86 CAD Model

Description

The Rohm Semiconductor SML-P24MUWT86 is a high-popularity PicoLED™ that features green and red 572nm green and 620nm red LED indication.

  • Product: PicoLED™
  • LED Colors: green and red 572nm green and 620nm red
  • Package Size: 0404 (1010 Metric)
  • Voltage (Green): 2.2V
  • Voltage (Red): 2.1V
  • Mounting Technology: surface mount
  • Family Name: SML-P24
  • Lifecycle Status: not for new designs
  • Operating Temperature: -55°C to 150°C (TJ)
