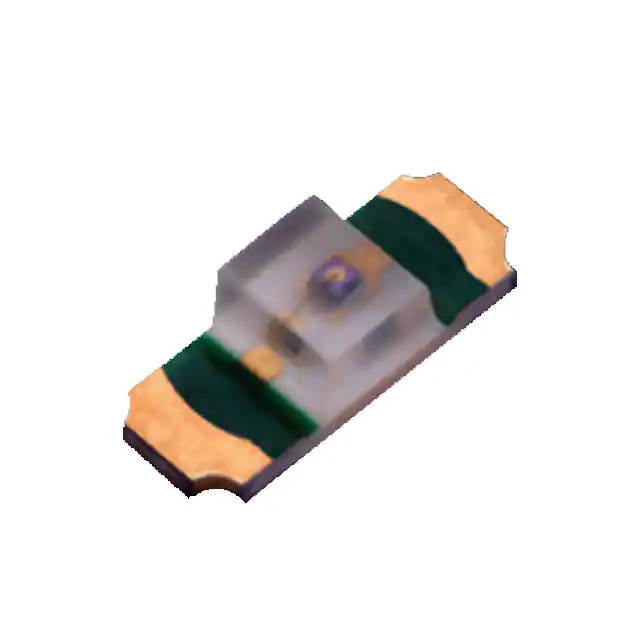

Same model may have multiple batches, images only for reference.
SML-811VTT86A Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SML-811VTT86A

Part No SML-811VTT86A
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description LED RED CLEAR 3412 SMD
Datasheet
SML-811VTT86A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Rohm Semiconductor
Series SML-811
Package Tape & Reel
Product Status Active
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 22.4mcd
Lens Style Rectangle with Flat Top
Lens Size 1.25mm x 1.20mm
Voltage - Forward (Vf) (Typ) 1.95V
Current - Test 10mA
Viewing Angle -
Mounting Type Surface Mount, Bottom Entry
Wavelength - Dominant 630nm
Wavelength - Peak -
Features -
Package / Case 1305 (3412 Metric)
Supplier Device Package 3412(1305)
Size / Dimension 3.40mm L x 1.25mm W
Height (Max) 1.20mm
Base Product Number SML-811
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1371915-SML-811VTT86A
Ultra Librarian 3D Model Ultra Librarian SML-811VTT86A CAD Model

Description

The SML-811VTT86A is a red LED indication discrete component manufactured by Rohm Semiconductor.

  • Mounting Type: surface mount
  • Package: 1305 (3412 Metric)
  • Size: 3.40mm L x 1.25mm W
  • Millicandela Rating: 22.4mcd
  • Forward Voltage (Vf): 1.95V @ 10mA
  • Wavelength: 630nm
  • Lens Shape: rectangular with a flat top
