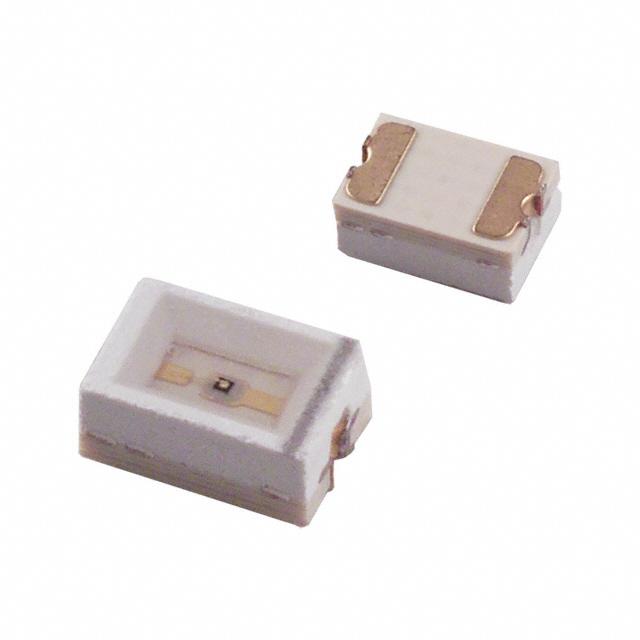

SML-013UTT86 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

SML-013UTT86

Part No SML-013UTT86
Manufacturer Rohm Semiconductor
Catalog LED Indication - Discrete
Description Reflector type (3.0x2.0mm, t 1.3mm)
Datasheet
SML-013UTT86 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Series SML-01
Packaging Reel - TR
Color Red
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 220mcd
Lens Style/Size Rectangle with Flat Top, 2.30mm x 1.60mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Mounting SMD
Wavelength - Dominant 624nm
Package 1208 (3020 Metric)
Manufacturer Package 3020(1208)
Size 3.00mm L x 2.00mm W
Height (Maximum) 1.50mm
Win Source Part Number 1251958-SML-013UTT86
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Limited
Family Name SML-013UT
Introduction Date June 28, 2004
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian SML-013UTT86 CAD Model

Description

The SML-013UTT86 is an optoelectronic component manufactured by Rohm Semiconductor.

  • Status: Limited supply and demand
  • Shape: Rectangular with a flat top
  • Size: 2.30mm x 1.60mm
  • Voltage-Forward: 2V
  • Millicandela Rating: 220mcd
  • Dominant Wavelength: 624nm
  • EOL Date: 2023
