Same model may have multiple batches, images only for reference.

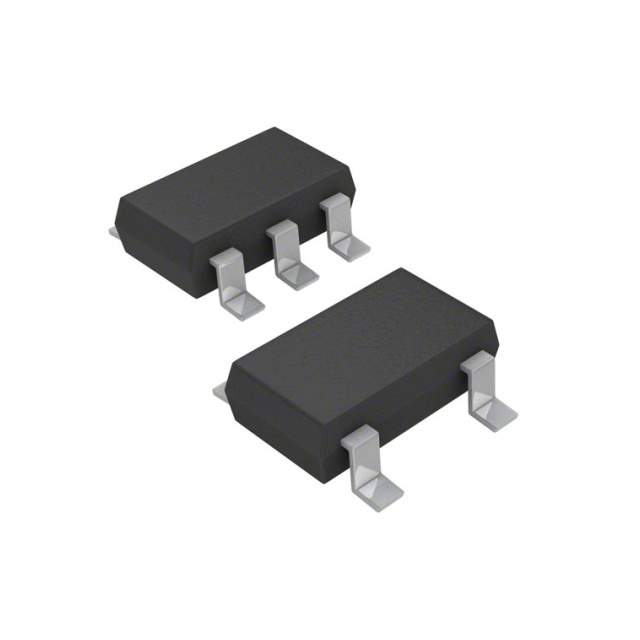

RR274EA-400FHTR Real Image
Same model may have multiple batches, images only for reference.

RR274EA-400FHTR

Part No RR274EA-400FHTR
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description RECTIFIER DIODE (AEC-Q101 QUALIF  /  Diode Array 2 Independent Standard 400 V 500mA Surface Mount SOT-23-5 Thin, TSOT-23-5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Rohm Semiconductor
Package Tape & Reel (TR)
Diode Configuration 2 Independent
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) (per Diode) 500mA
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 500 mA
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 10 µA @ 400 V
Operating Temperature - Junction 150°C
Mounting SMD (SMT)
Package / Case SOT-23-5 Thin, TSOT-23-5
Supplier Device Package TSMD5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Other Names 846-RR274EA-400FHTR
Standard Package 3,000
Win Source Part Number 961446-RR274EA-400FHTR
Ultra Librarian 3D Model Ultra Librarian RR274EA-400FHTR CAD Model

Description

The Rohm Semiconductor RR274EA-400FHTR is a diode rectifier array in the Discrete Semiconductor Products category.

  • Application: Rectification and power supply applications
  • Supply and Demand Status: Balanced
  • Maximum Reverse Voltage Rating: 400V
  • Maximum Forward Current: 500mA
  • Forward Voltage Drop: 1.1V @ 500mA
  • Reverse Leakage Current: 10μA @ 400V
  • Package: SOT-23-5
