Same model may have multiple batches, images only for reference.

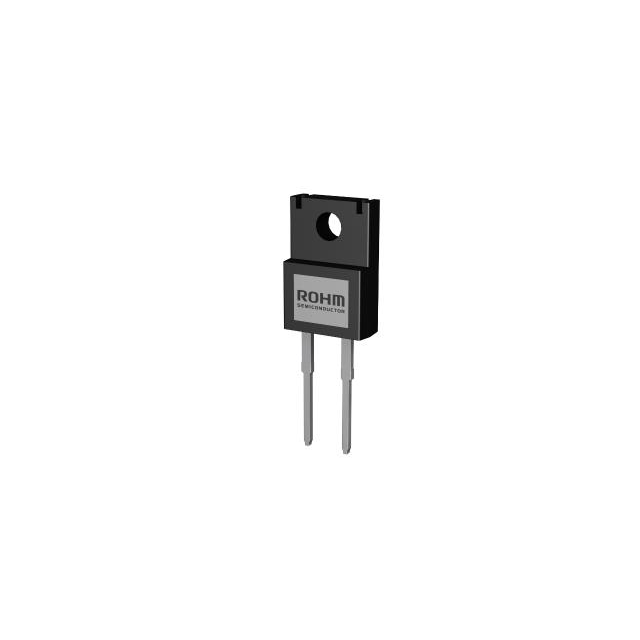

RFUH25TB3SNZC9 Real Image
Same model may have multiple batches, images only for reference.

RFUH25TB3SNZC9

Part No RFUH25TB3SNZC9
Manufacturer Rohm Semiconductor
Catalog Diodes, Rectifiers - Single
Description RFUH25TB3SNZ IS AN ULTRA LOW SWI / Diode Standard 350 V 20A Through Hole TO-220FN-2
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Rohm Semiconductor
Package Tube
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 350 V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 1.45 V @ 20 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 30 ns
Current - Reverse Leakage @ Vr 10 µA @ 350 V
Mounting Type Through Hole
Package / Case TO-220-2 Full Pack
Supplier Device Package TO-220FN-2
Operating Temperature - Junction 150°C
Base Product Number RFUH25
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 846-RFUH25TB3SNZC9
Standard Package 50
Win Source Part Number 1215957-RFUH25TB3SNZC9
Ultra Librarian 3D Model Ultra Librarian RFUH25TB3SNZC9 CAD Model

Description

The RFUH25TB3SNZC9 diode from Rohm Semiconductor is a standard type diode.

  • Maximum DC Reverse Voltage (Vr): 350V
  • Average Rectified Current (Io): 20A
  • Voltage Forward (Vf) (max) @ If: 1.45V @ 20A
  • Reverse Recovery Time (trr): 30ns
  • Current Reverse Leakage @ Vr: 10µA @ 350V
  • Package: TO-220-2 Full Pack
  • Supplier Device Package: TO-220FN-2
  • Operating Temperature: Up to 150°C
  • Mounting Type: Through-hole
  • Application: Rectifiers and single diodes
