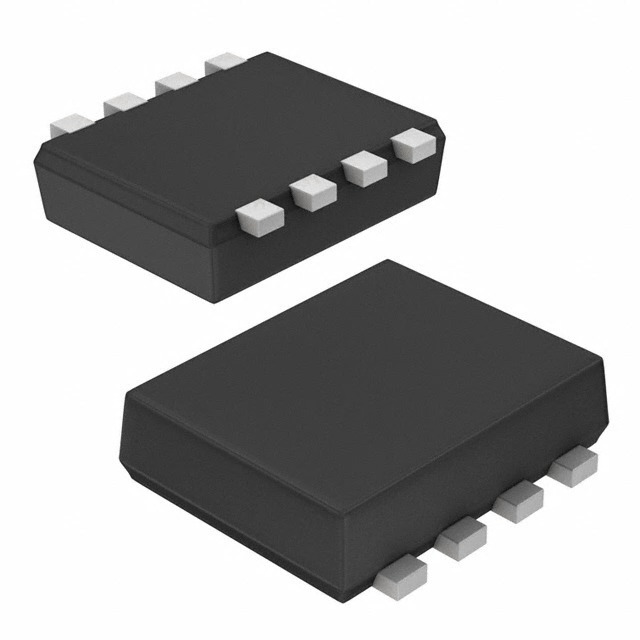

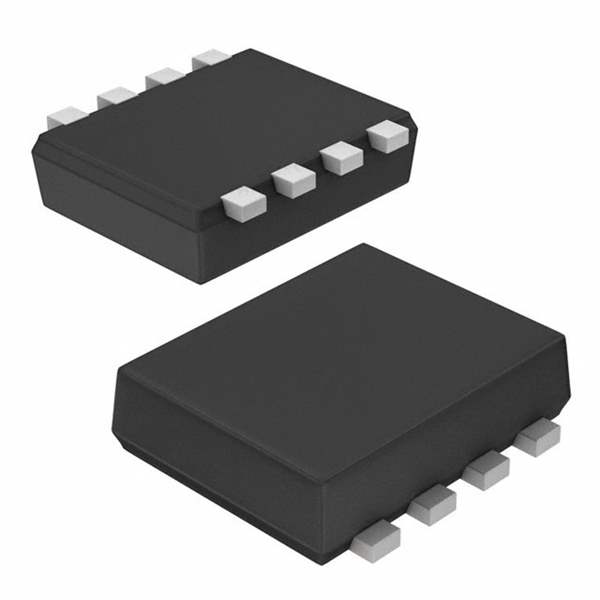

Same model may have multiple batches, images only for reference.

QH8MA2TCR

Name: QH8MA2TCR
Brand: Rohm Semiconductor
SKU: 800478
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	QH8MA2TCR
Manufacturer	Rohm Semiconductor
Catalog	FETs - Arrays
Description	MOSFET N/P-CH 30V 4.5A/3A TSMT8
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Rohm Semiconductor
Packaging	Reel
FET Type	N and P-Channel
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) at 25°C	4.5A, 3A
Rds On (Maximum) at Id, Vgs	35mOhm at 4.5A, 10V
Vgs(th) (Maximum) at Id	2.5V at 1mA
Gate Charge (Qg) (Maximum) at Vgs	8.4nC at 10V
Input Capacitance (Ciss) (Maximum) at Vds	365pF at 10V
Power - Max	1.25W
Temperature Range - Operating	150°C
Mounting Style	SMD
Manufacturer Package	8-SMD, Flat Lead
Supplier Device Package	TSMT8
Manufacturer Pack Quantity	3,000
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Sufficient
Win Source Part Number	800478-QH8MA2TCR
Ultra Librarian 3D Model	Ultra Librarian QH8MA2TCR CAD Model

Alternative Products

Description

The QH8MA2TCR is an electronic component manufactured by Rohm Semiconductor.

Packaging: Reel
Mounting Style: SMD
FET Type: N and P-Channel
FET Feature: Logic Level Gate
Drain to Source Voltage (Vdss): 30V
Power-Max: 1.25W
Supplier Device Package: TSMT8
Operating Temperature: 150 degrees Celsius
Manufacturer Package: 8-SMD, flat lead
Supply/Demand: Sufficient
Manufacturer Pack Quantity: 3,000
MSL Level: 1 (unlimited)
Rds On (Maximum) @ Id, Vgs: 35mOhm @ 4.5A, 10V
Gate Charge (Qg) (Maximum) @ Vgs: 8.4nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds: 365pF @ 10V
Current-Continuous Drain (Id) @ 25 degrees Celsius: 4.5A, 3A
Vgs(th) (Maximum) @ Id: 2.5V @ 1mA
