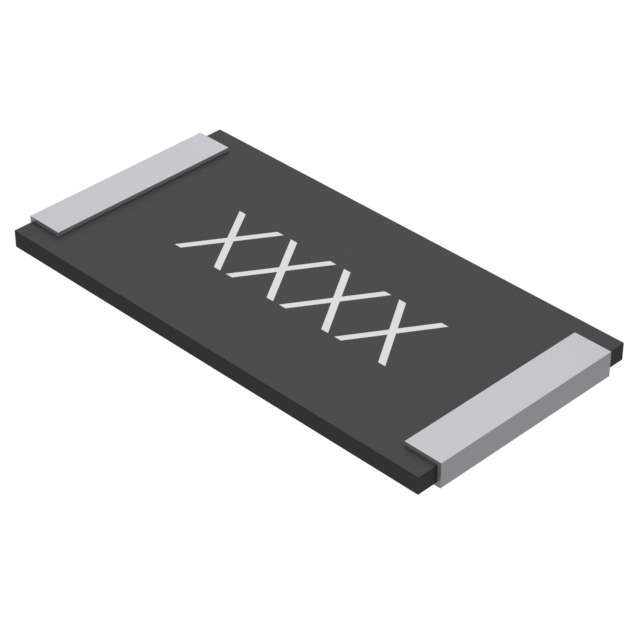

Same model may have multiple batches, images only for reference.
PMR100HZPJV1L0 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

PMR100HZPJV1L0

Part No PMR100HZPJV1L0
Manufacturer Rohm Semiconductor
Catalog Chip Resistor - Surface Mount
Description RES 0.001 OHM 5% 2W 2512
Datasheet
PMR100HZPJV1L0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1304299-PMR100HZPJV1L0
Manufacturer Rohm Semiconductor
Category Resistors- Chip Resistor - Surface Mount
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Not For New Designs
Resistance (Ohms) 1 mOhms
Tolerance ±5%
Temperature Coefficient ±150ppm/°C
Operating Temperature -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Size / Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Ultra Librarian 3D Model Ultra Librarian PMR100HZPJV1L0 CAD Model

Description

Features
1) Ultra low-ohmic resistance range (1mΩ ~ )
2) Improved current detection accuracy by trimming-less structure.
3) Special low resistance temperature coefficient.
4) The unique chip structure minimizes thermal stress during temperature cycling, resulting in greater reliability.
5) ROHM resistors have obtained ISO9001 / IATF16949 certification.
6) Corresponds to AEC-Q200.
