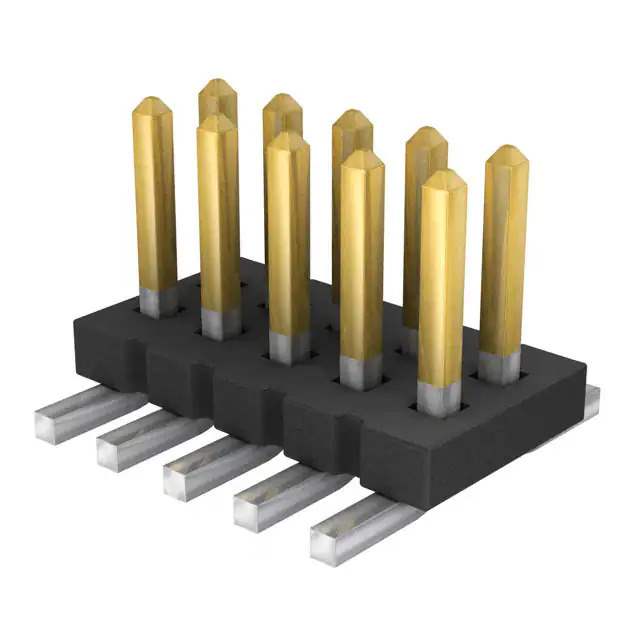

Same model may have multiple batches, images only for reference.

FTS-105-01-L-DV-P

Name: FTS-105-01-L-DV-P
Brand: Samtec Inc.
SKU: 852804
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FTS-105-01-L-DV-P
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 1.27MM / Connector Header Surface Mount 10 position 0.050" (1.27mm)
Datasheet	FTS-105-01-L-DV-P Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTS
Package	Tube
Product Status	Active
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.034" (0.86mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTS-105
Standard Package	93 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	852804-FTS-105-01-L-DV-P
Ultra Librarian 3D Model	Ultra Librarian FTS-105-01-L-DV-P CAD Model

Alternative Products

Description

The Samtec Inc. 852804-FTS-105-01-L-DV-P is a versatile rectangular connector designed for board-to-board or cable applications.

Product Name: 852804-FTS-105-01-L-DV-P
Manufacturer: Samtec Inc.
Series: FTS
Application: Board-to-Board or Cable
Positions: 10
Gender: Male
Type: Header
Cuttable: Yes
Pitch: 0.050" (1.27mm)
Mounting Type: Surface Mount
Color: Black
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Finish: Gold-Plated
Temperature Range: -55°C to 125°C
