Products specifications

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Rohm Semiconductor
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 80 V
Current - Average Rectified (Io) (per Diode) 100mA
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 100 nA @ 70 V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Package / Case SC-85
Supplier Device Package UMD3F
Base Product Number DAN202
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names DAN202UMFHTLTR,DAN202UMFHTLCT,DAN202UMFHTLDKR
Standard Package 3,000
Win Source Part Number 961760-DAN202UMFHTL
Ultra Librarian 3D Model Ultra Librarian DAN202UMFHTL CAD Model

Description

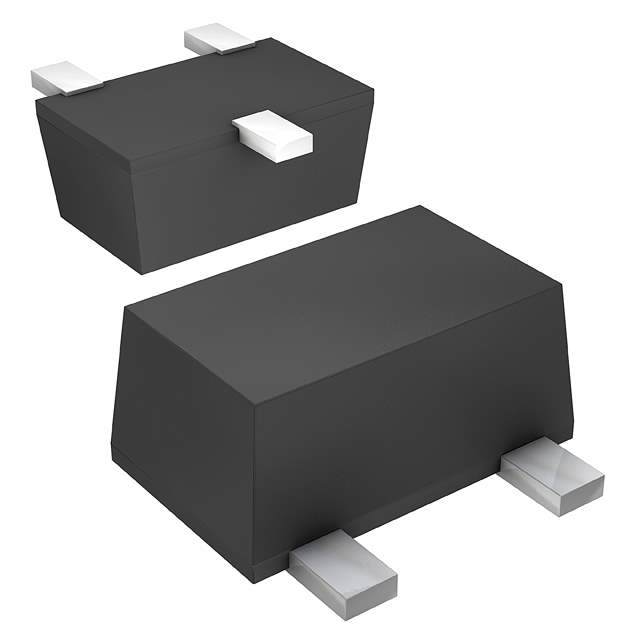

The 961760-DAN202UMFHTL is a pair of common cathode standard diodes with a voltage DC reverse (Vr) (Max) of 80 V and a voltage forward (Vf) (Max) @ If of 1.2 V @ 100 mA.

  • Voltage DC Reverse (Vr) (Max): 80 V
  • Voltage Forward (Vf) (Max) @ If: 1.2 V @ 100 mA
  • Reverse Recovery Time (trr): 4 ns
  • Current Reverse Leakage @ Vr: 100 nA @ 70 V
  • Current Average Rectified (Io) (per diode): 100mA
  • Package/Case: SC-85
  • Supplier Device Package: UMD3F
