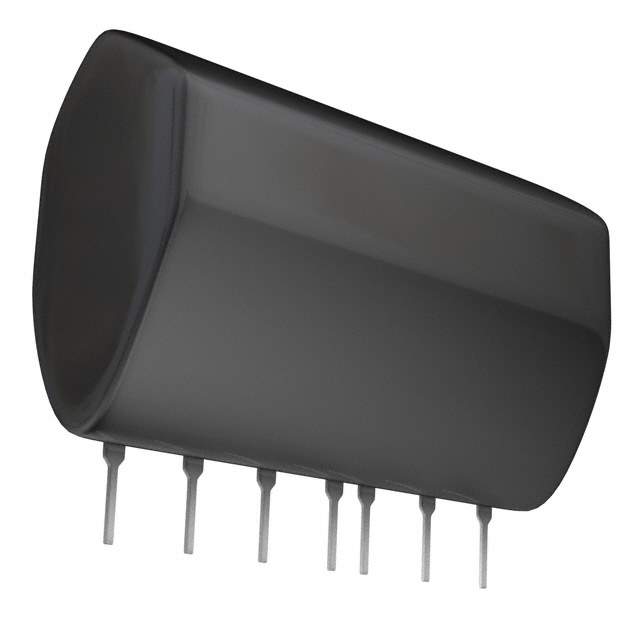

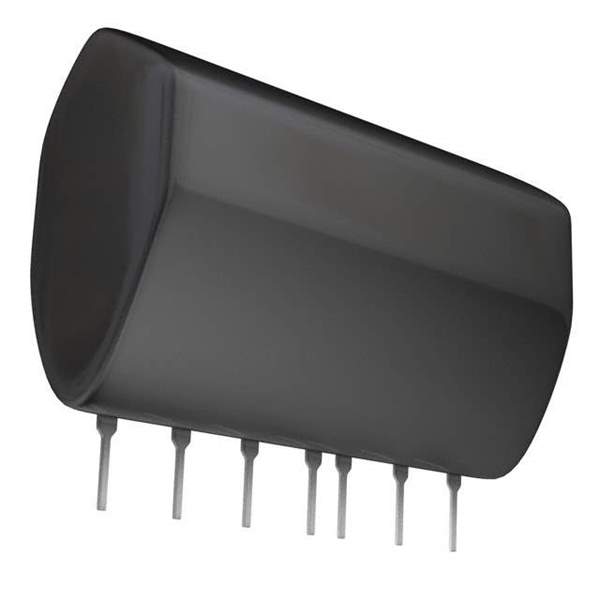

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Rohm Semiconductor
Series BP5068
Type Enclosed
Number of Outputs 1
Voltage - Input 80 ~ 120 VAC
Voltage - Output 1 -12V
Current - Output (Maximum) 800mA
Power (Watts) 10W
Applications ITE (Commercial)
Operating Temperature Range -20°C ~ 80°C (With Derating)
Efficiency 78%
Mounting Style Through Hole
Package 12-SIP Module, 7 Leads
Size 1.36" L x 0.44" W x 0.85" H (34.5mm x 11.3mm x 21.5mm)
Line Regulation 200mV
Load Regulation 500mV
Win Source Part Number 1153944-BP5068A
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 96
Family Name BP5068
Introduction Date April 30, 2002
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian BP5068A CAD Model

Description

The BP5068A is an enclosed-type electronic component that belongs to the BP5068 series.

  • Manufacturer: Rohm Semiconductor
  • Type: Power Supply Board Mount
  • Popularity: Medium
  • Maximum Output Current: 800mA
  • Efficiency: 78%
