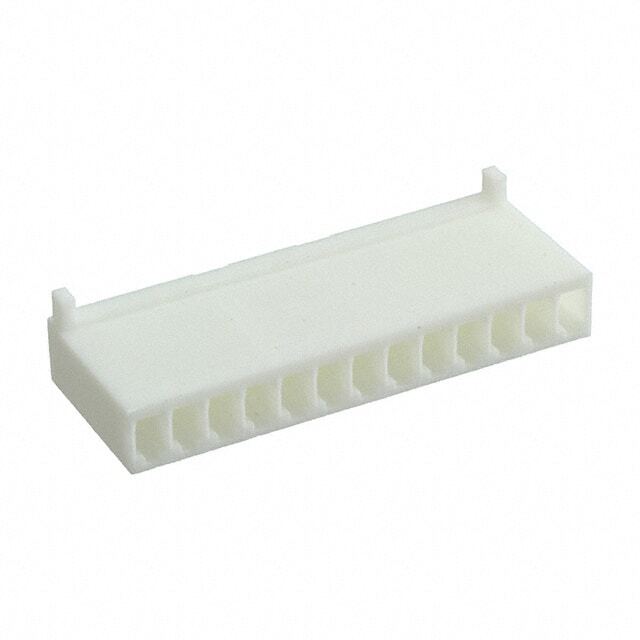

22012135 Molex, LLC
Same model may have multiple batches, images only for reference.

22012135

Part No 22012135
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr Molex
Series KK254, 6471
Package Bulk
Product Status Obsolete
Connector Type Receptacle
Contact Type Non-Gendered
Number of Positions 13
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Natural
Features Polarizing Key
Note Contacts Not Included
Base Product Number 002201
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1315834-22012135
Ultra Librarian 3D Model Ultra Librarian 22012135 CAD Model

Description

The KK254, 6471 series connector from Molex is a high-quality rectangular connector housing designed for use in a variety of electronic devices.

  • Connector Type: Receptacle
  • Positions: 13
  • Pitch: 0.100" (2.54mm)
  • Color: Natural
  • Polarization: Polarizing key
  • Gender: Non-gendered
  • Rows: Single
  • Row Spacing: None
  • Package: Bulk
  • Contact Termination: Crimp
  • MSL Level: 1 (unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8536.69.8000
