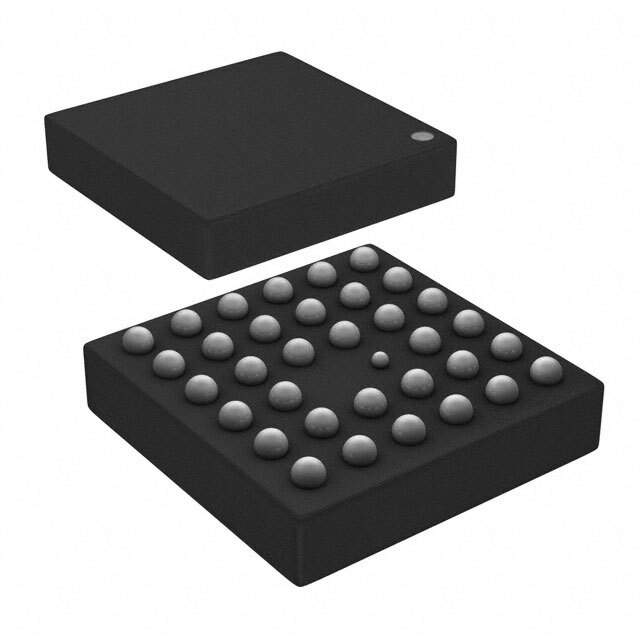

BD6373GW-E2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Motor Type - Stepper Bipolar
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (12)
Interface Parallel
Technology DMOS
Applications Camera
Output Current 500mA
Operating Supply Voltage 2.5 V ~ 5.5 V
Voltage - Load 2.5 V ~ 5.5 V
Operating Temperature Range -25°C ~ 150°C (TJ)
Mounting SMD
Package 34-VFBGA, CSPBGA
Manufacturer Package 32-UCSP75M2 (2.5x2.5)
Win Source Part Number 1152807-BD6373GW-E2
Manufacturer Homepage www.rohm.com
Popularity Medium
Supply and Demand Status Limited
Family Name BD6373GW
Introduction Date June 14, 2005
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian BD6373GW-E2 CAD Model

Description

This is a fully integrated driver with control and power stage from the BD6373GW family.

  • Output Configuration: half-bridge (12)
  • Motor Type: bipolar stepper motor type, brushed DC motor type
  • Operating Temperature Range: -25°C to 150°C (TJ)
  • Operating Supply Voltage: 2.5 V to 5.5 V
  • Package: 34-VFBGA, CSPBGA
  • Mounting: SMD
  • Technology: DMOS
  • Interface: parallel
  • Step Resolution: not specified
  • Manufacturer Homepage: www.rohm.com
  • Manufacturer Package: 32-UCSP75M2 (2.5x2.5)
  • Introduction Date: June 14, 2005
  • Estimated EOL Date: 2023
