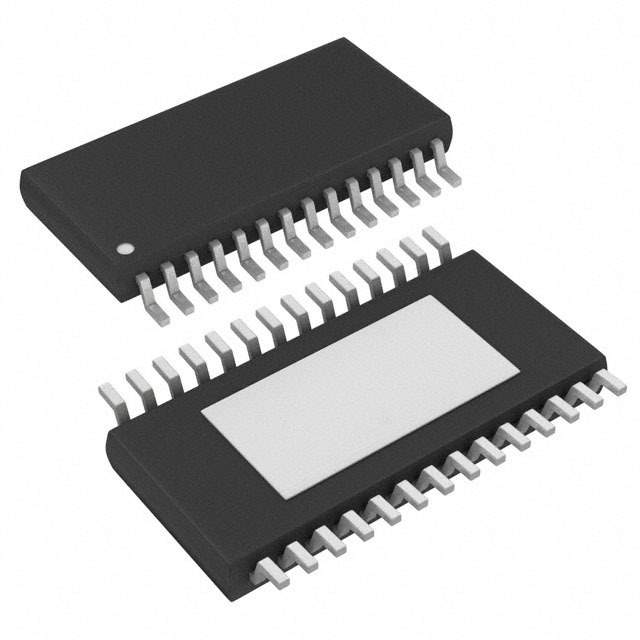

BD62220AEFV-E2 Real Image1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Motor Drivers, Controllers
Mfr Rohm Semiconductor
Package Tape & Reel
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface PWM
Technology DMOS
Applications Printer
Current - Output 2.83A
Voltage - Supply 8V ~ 28V
Voltage - Load 8V ~ 28V
Temperature Range - Operating -25°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 28-VSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package 28-HTSSOP-B
Base Product Number BD62220
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names BD62220AEFV-E2CT,BD62220AEFV-E2TR,BD62220AEFV-E2DKR
Standard Package 2,500
Win Source Part Number 991714-BD62220AEFV-E2
Ultra Librarian 3D Model Ultra Librarian BD62220AEFV-E2 CAD Model

Description

The Rohm Semiconductor BD62220AEFV-E2 is a fully integrated motor driver designed for use in printer applications.

  • Current Output: 2.83A
  • Voltage Load: 8V to 28V
  • Interface: PWM
  • Output Configuration: half bridge
  • Mounting: SMD (SMT)
  • Packaging: tape and reel
  • Units per Package: 2500
  • Package/Case Size: 28-VSSOP (0.173", 4.40mm Width) Exposed Pad
  • Temperature Range: -25°C to 85°C (TA)
  • Motor Type: brushed DC motor
