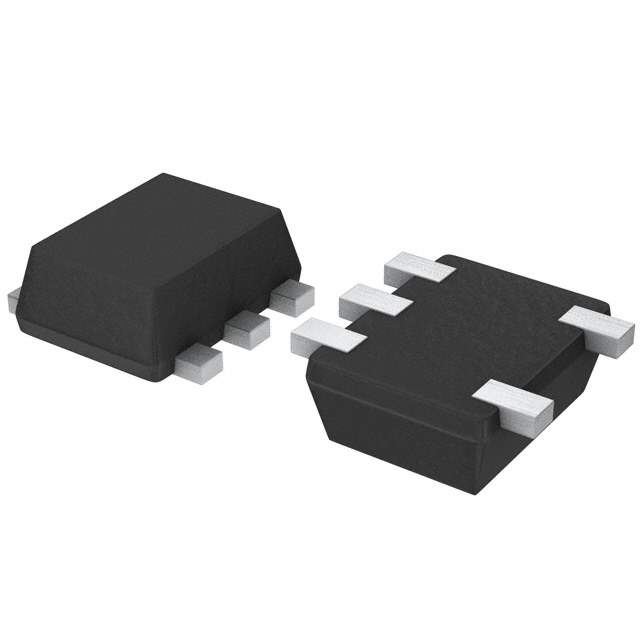

The BD4926FVE is a voltage detector IC manufactured by Rohm Semiconductor, designed for power management and system supervision. It is used to monitor the input voltage and provide a reset signal to a microcontroller or other digital circuits when the voltage drops below a specified threshold.

Applications

• Microcontroller Reset Circuits: Ensures proper reset functionality for microcontrollers during power-up or brownout conditions.
• CPU Reset Circuits: Provides a reliable reset signal to CPUs in embedded systems.
• Power Supply Monitoring: Continuously monitors the output voltage of power supplies.
• Battery-Powered Devices: Protects battery-powered devices from operating under low-voltage conditions, preventing data loss and potential damage.
• Industrial Control Systems: Monitors critical voltage rails in industrial equipment to ensure stable operation.

Features

• Accurate Detection Voltage: Provides a precise voltage threshold for detecting undervoltage conditions.
• Open Drain Output: Offers flexibility in interfacing with different logic levels.
• Low Current Consumption: Minimizes power consumption in the monitoring circuit.
• Small Package: Comes in a compact package to save board space.
• Hysteresis: Prevents oscillations near the threshold voltage, ensuring stable operation.

Benefits

• Improved System Stability: Enhances system stability by preventing erratic behavior caused by undervoltage conditions.
• Enhanced System Reliability: Increases overall system reliability by protecting against undervoltage-related failures.
• Simplified Design: Simplifies the design of reset circuits, requiring minimal external components.
• Cost-Effective Solution: Provides a cost-effective solution for voltage monitoring and reset generation.
• Prevention of Data Corruption: Protects data by ensuring the system is reset before the voltage drops too low for reliable operation.

Additional Details

The BD4926FVE typically requires an external pull-up resistor connected to its open-drain output. The detection voltage is a critical parameter and should be selected based on the system's requirements. Refer to the datasheet for detailed specifications, timing diagrams, and application circuit examples.
