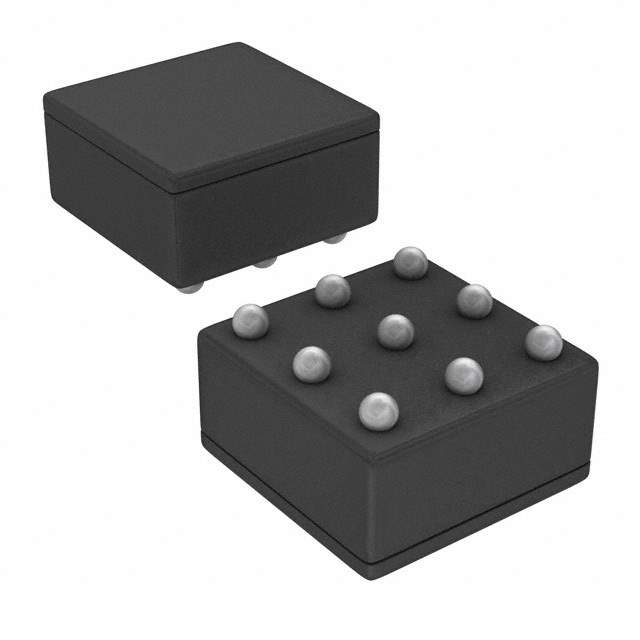

The LM3700XCBP-308/NOPB is a versatile, high-performance microprocessor supervisory circuit designed and manufactured by Texas Instruments. This component is engineered to monitor system voltages and other critical system functions in digital systems, ensuring reliable operation and protection against system failures.

Key Features

• Voltage Monitoring: The device includes precision voltage monitoring capabilities for 3.08V systems, safeguarding against undervoltage conditions that could lead to system instability or damage.
• Reset Output: It features an active-low reset output, which ensures that the connected microprocessor or digital system is reset to a known state during power-up, power-down, or brown-out conditions.
• Manual Reset: An additional manual reset input allows for system resets to be triggered by external events or user interaction, offering greater control over system behavior.
• Power-On Reset Delay: The LM3700XCBP-308/NOPB incorporates a programmable delay time for the power-on reset function, allowing designers to customize the reset activation to suit specific system requirements.
• Temperature Range: This component is designed to operate over an industrial temperature range, making it suitable for use in harsh environments.
• Packaging: The device comes in a 5-pin SOT-23 package, which is both space-saving and convenient for integration into a wide variety of system designs.
• Lead-Free and RoHS Compliant: In line with environmental regulations, the LM3700XCBP-308/NOPB is lead-free and RoHS compliant, minimizing the environmental impact and meeting global standards for electronic components.

Applications

The LM3700XCBP-308/NOPB is ideal for use in a range of applications, including:

• Microprocessor, microcontroller, and DSP monitoring
• Portable and battery-powered equipment
• Intelligent instruments
• Industrial control systems
• Embedded systems

With its robust feature set and Texas Instruments' reputation for quality, the LM3700XCBP-308/NOPB is an excellent choice for designers seeking a reliable supervisory solution for their digital systems.
